| Quantity: | |
|---|---|

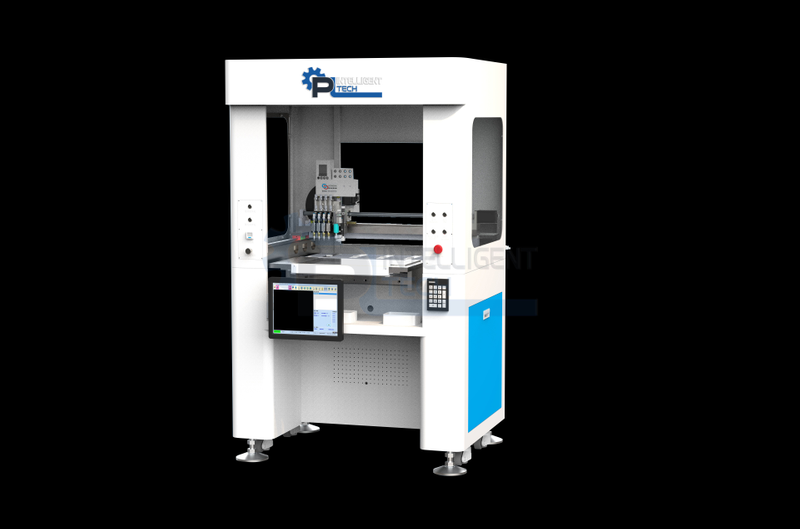

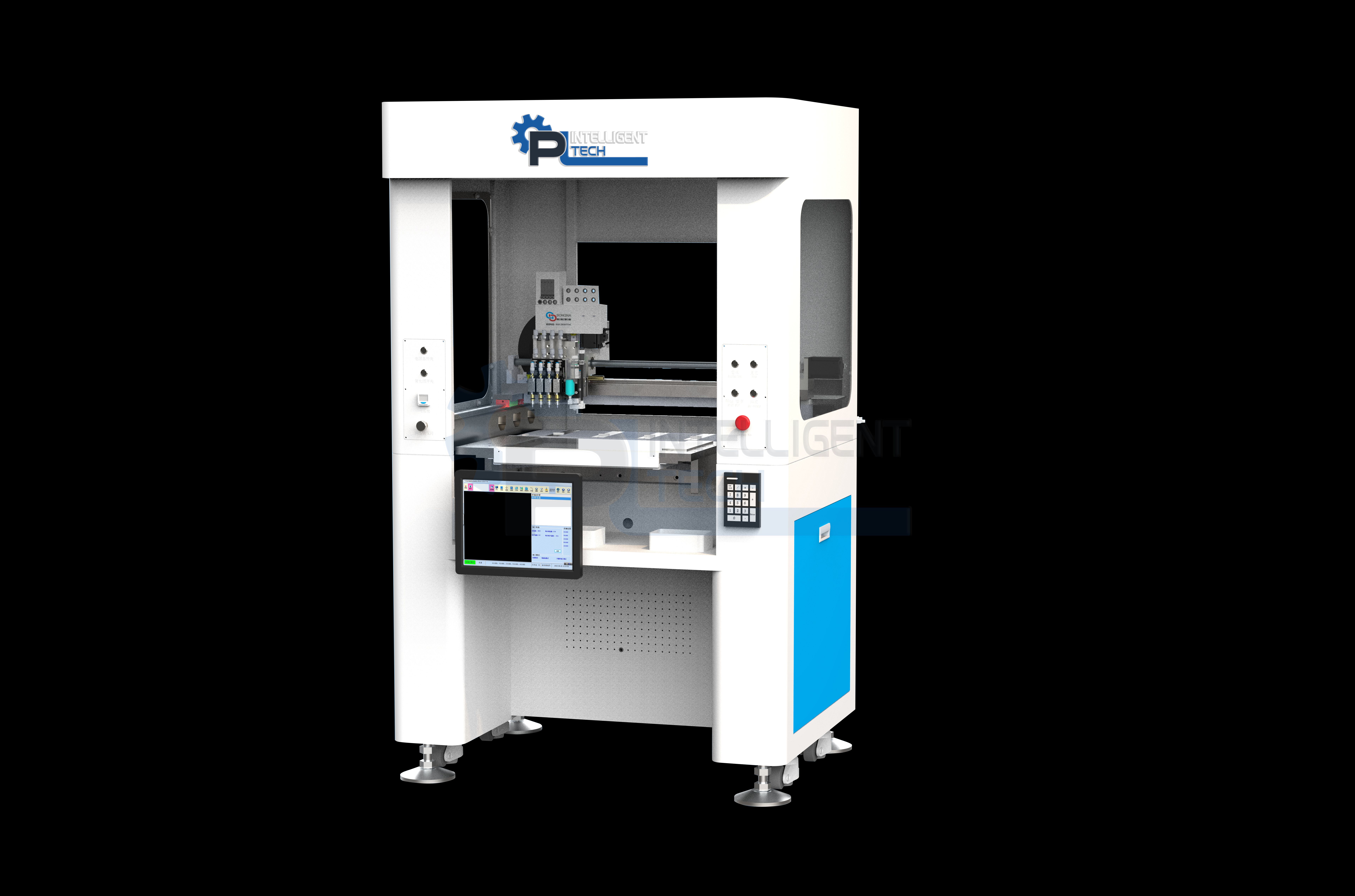

Dev ice Name | Fabric stone setting Robot | Dev ice Mode l | PL-V6T-B-V 1 |
Inlaid Stone Speed | Theoretica l Speeds 10000C PH | Dispensing Speed | Theoretica l Speed 20000C PH |
Inlaid Stone Accuracy | ±0.05mm | Main Operating System | 64 Dig its Windows |
Power Rating | 2KW | Working Power | AC220V/50HZ |
Transmission Method | Shangy in/Yintai Precision Guideway + TBI Screws | Appearance Size | 1300mm*1190mm*1780mm |
Machine Tool Structure | Gantry Bridge Structure | Number of Suction Nozzle | 6 Nozzles |
Weight of the Whole Robot | 800KG | Control System | Industrial Grade Self- Developed Motion Controller |
Drive System | High Precision Servo Drive System | X/Y/Z Effecive Travel | 450mm/500mm/ 100mm |
Range of Flat Processing | 400*300mm | Camera | 1 10 M i l lion/20 M i l ls ion P ixe ls (Customizab le) |
