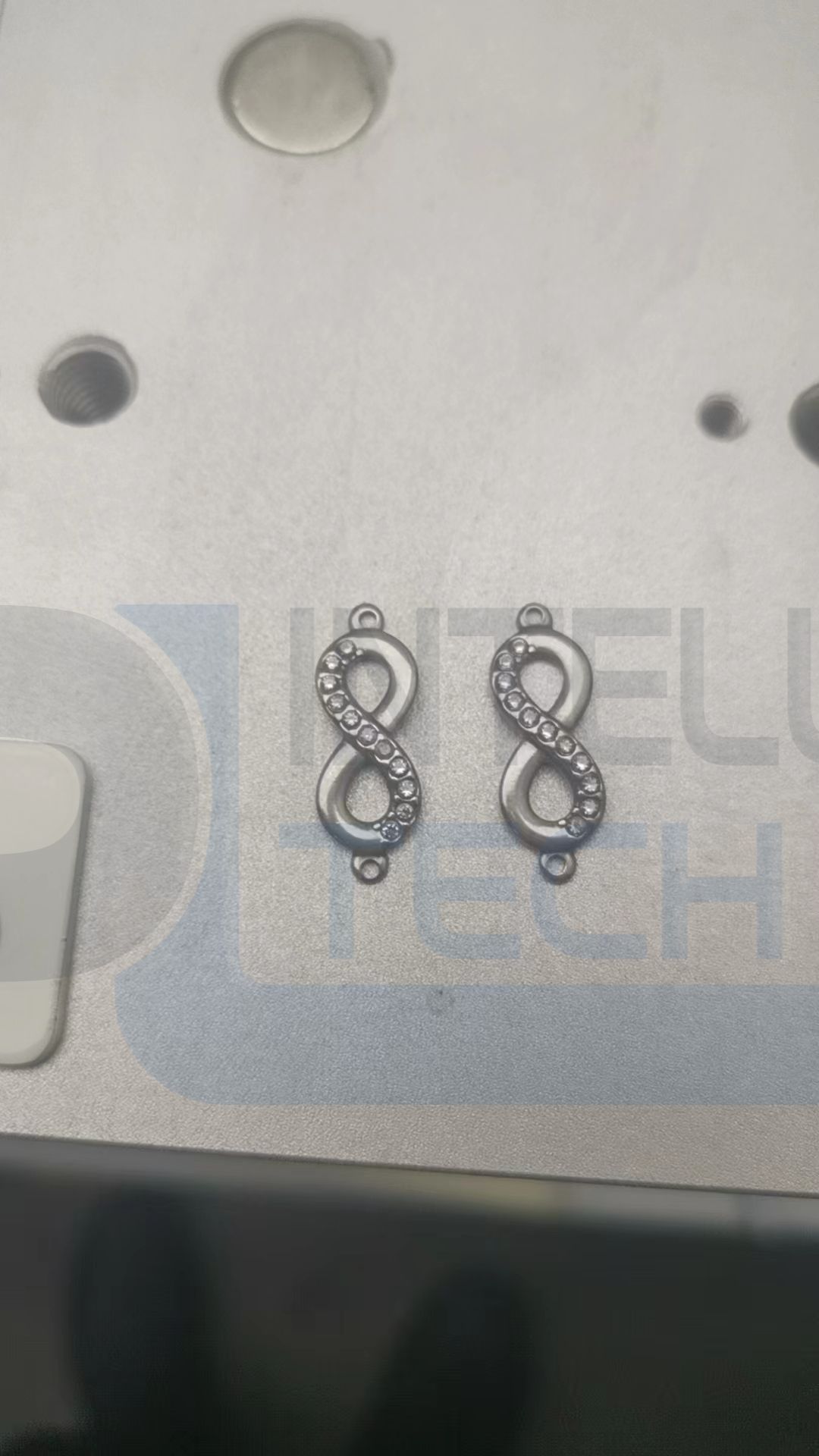

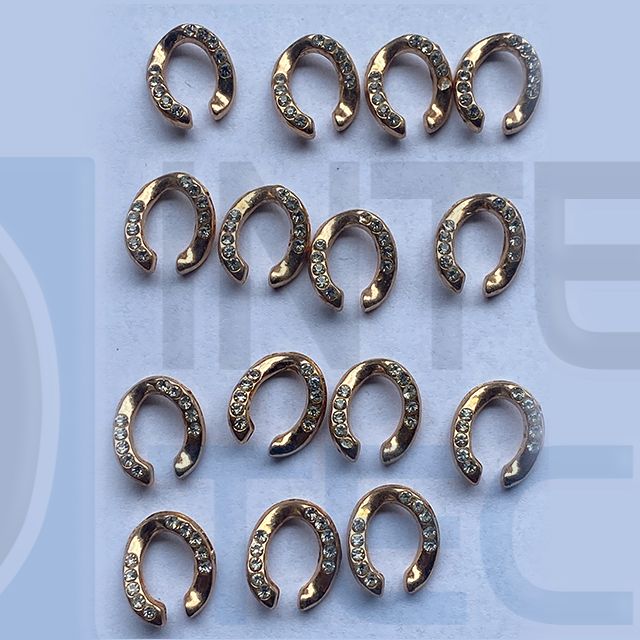

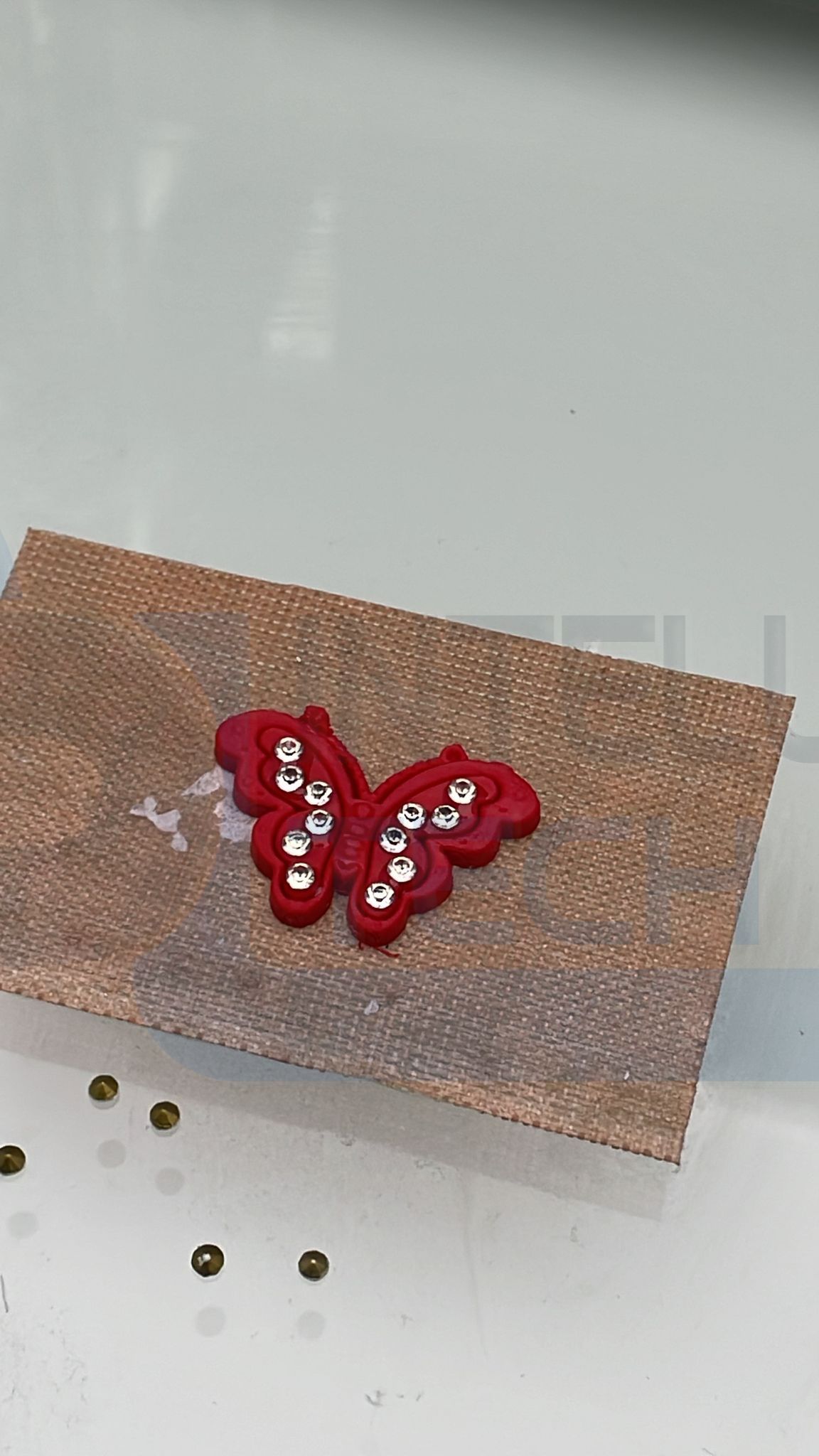

• Specially developed for the dispensing, fitting stones process of jewelry, hardware jewelry, plastics and woodwork, can meet the need of those plane easy to deformation, metal and plastic jewelry inlaying stones .
• Easy to operate, quick to get started, requiring little education of the operator.
• Dispensing and inlaying stones are done on the same robot, which ensures maximum production efficiency.
• Arbitrary placement of workpieces is allowed, no need for special jigs, reducing later jig investment.
• Super large memory space, which can store 9999 groups of files in order to store the files for easy recall later.
• One device can replace 3-5 people, saving a lot of manpower.
• High stability and consistency, with a product qualification rate of 99%, the quality has been substantially improved and the waste of resources has been reduced.
• The use of Device can greatly reduce the reflection of light to the eyes of workers during operation.
Minimum processing PP0 diamonds.

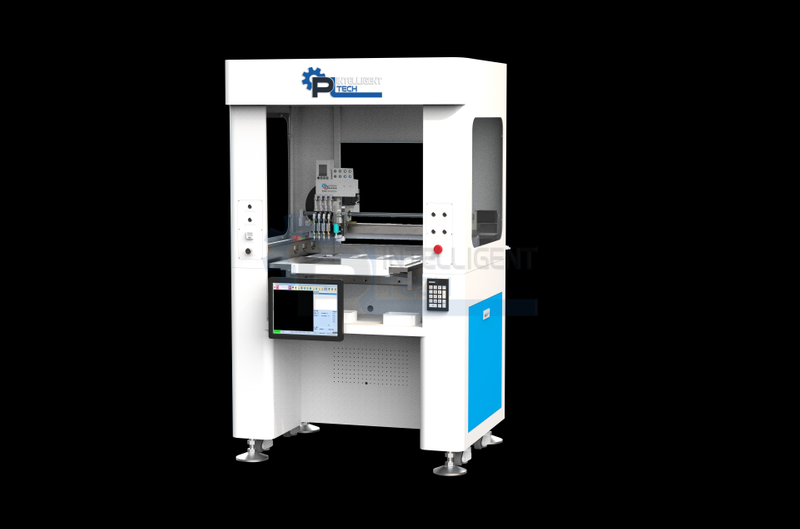

| Device Name | Vision Hardware Jewelry Inlaid Stone Robot | Device Model | PL-V6T-B-V1 |
| Inlaid Stone Speed | Theoretical Speeds 10000CPH | Dispensing Speed | Theoretical Speed 20000CPH |
| Inlaid Stone Accuracy | ±0.05mm | Main Operating System | 64 Digits Windows |
| Power Rating | 2KW | Working Power | AC220V/50HZ |
| Transmission Method | Shangyin/Yintai Precision Guideway + TBI Screws | Appearance Size | 1300mm*1190mm*1780mm |

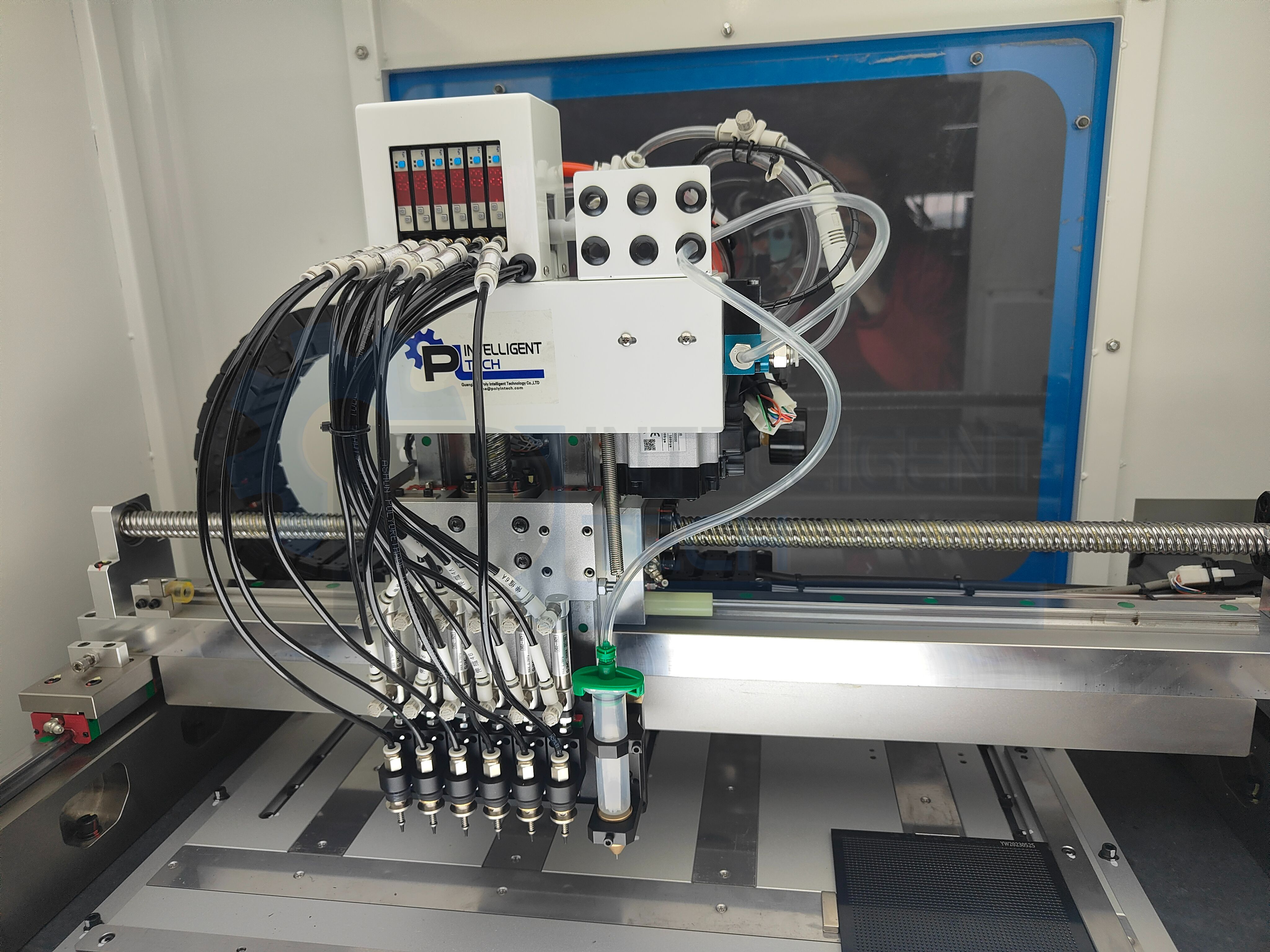

| Machine Tool Structure | Gantry Bridge Structure | Number of Suction Nozzle | 6 Nozzles |
| Weight of the Whole Robot | 800KG | Control System | Industrial Grade Self-Developed Motion Controller |
| Drive System | High Precision Servo Drive System | X/Y/Z Effecive Travel | 450mm/500mm/100mm |
| Range of Flat Processing | 400*300mm | Camera | 110 Million/20 Millsion Pixels(Customizable) |
