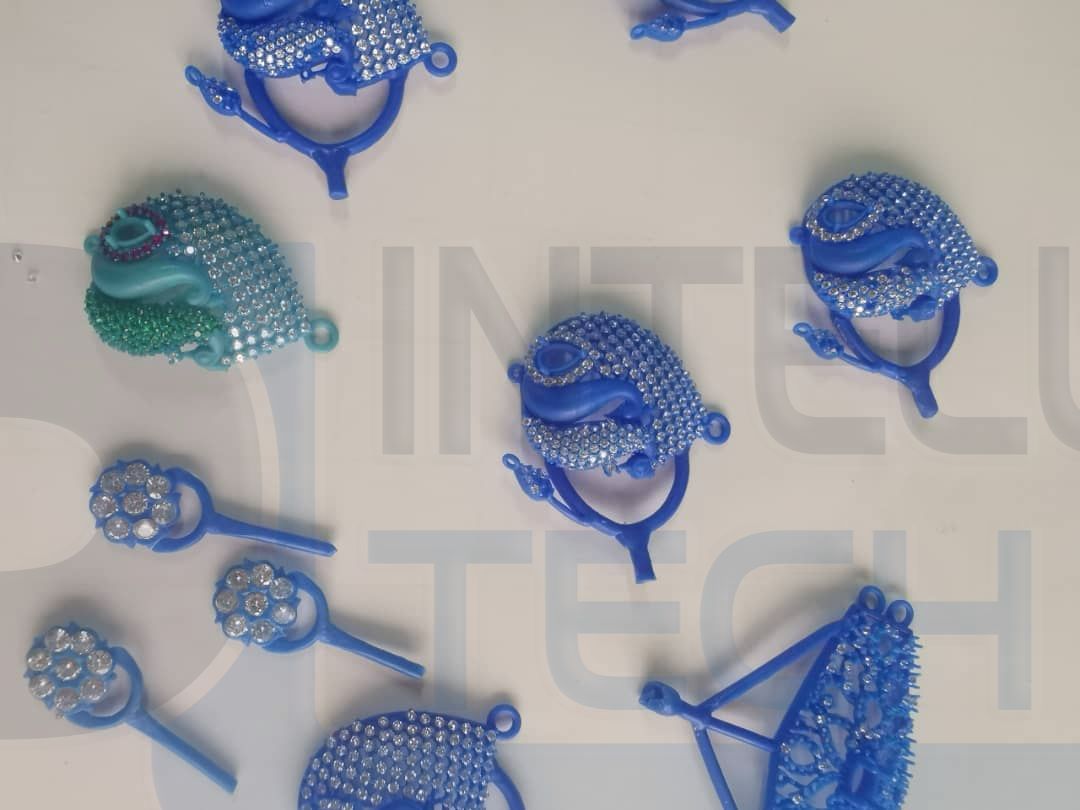

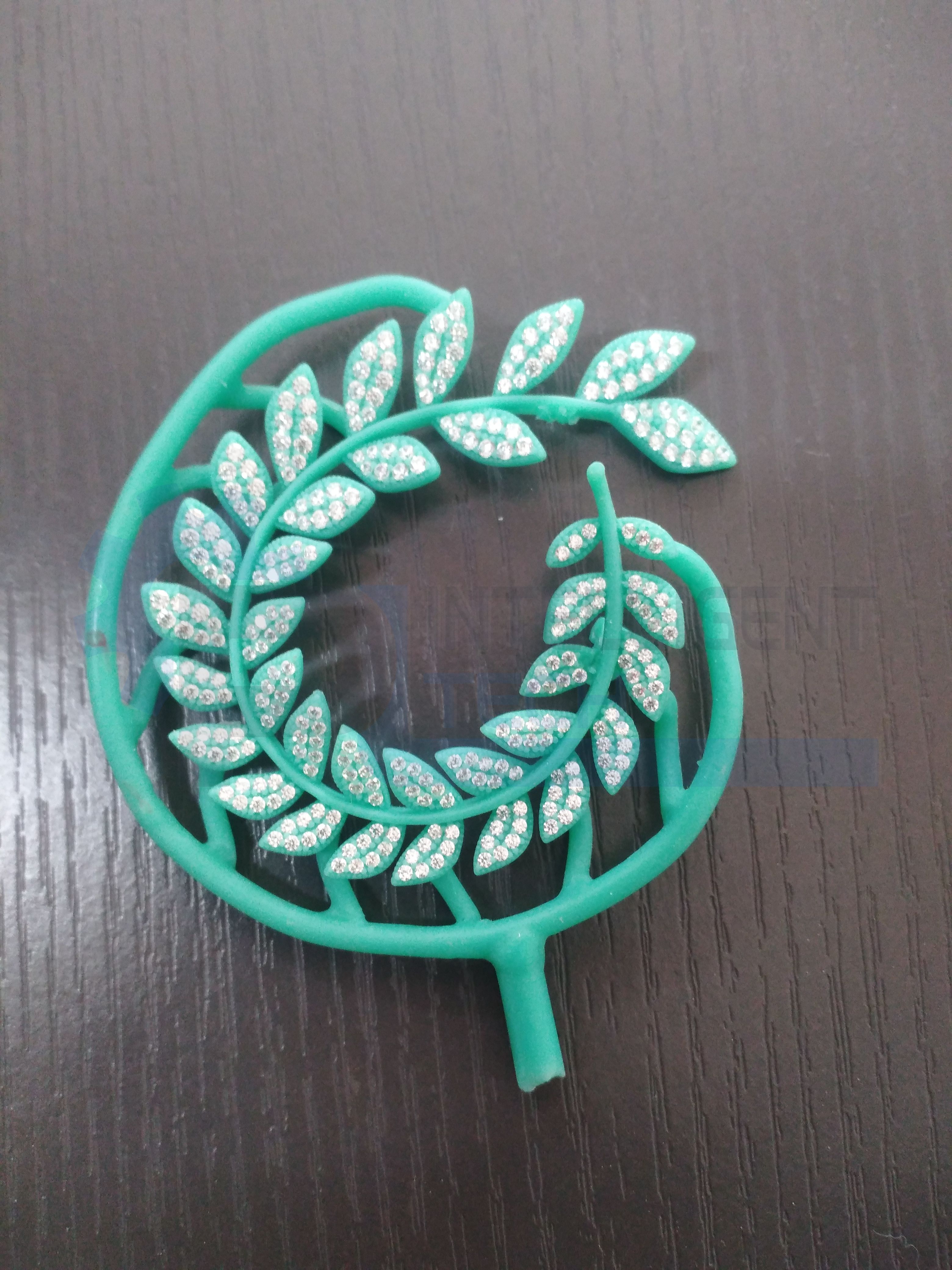

• It is a better choice for jewelry wax setting, gold, silver, copper, etc. that need to be inlaid stones precisely in a wax module.
• Easy to operate, quick to get started, requiring little education of the operator.
• Large memory space can store 9999 sets of files to store files for later recall;
• One device can replace 3-5 people, saving a lot of manpower;
• High stability and consistency, with a product qualification rate of 95%, the quality has been substantially improved and the waste of resources has been reduced.
• With the function of aiming the needle at targeted pit automatically, using easily.
• Stone heating function, wax table stone claw winding and heating function, which improve the pass rate and reduce the stone drop rate.

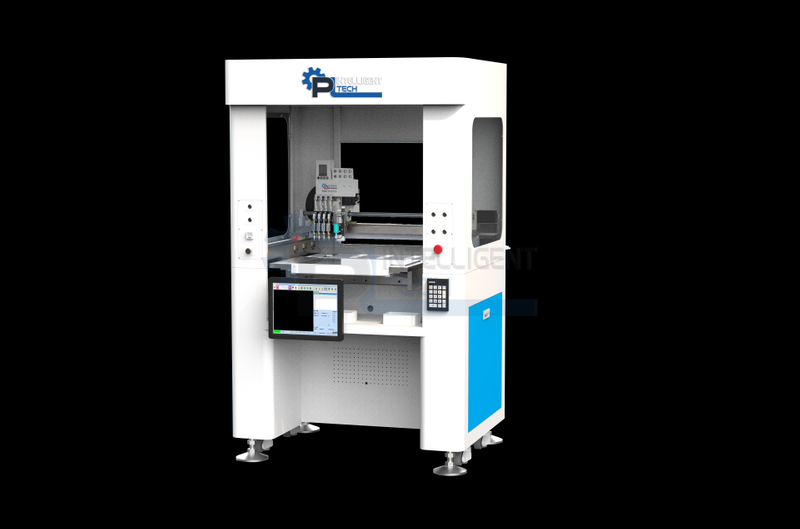

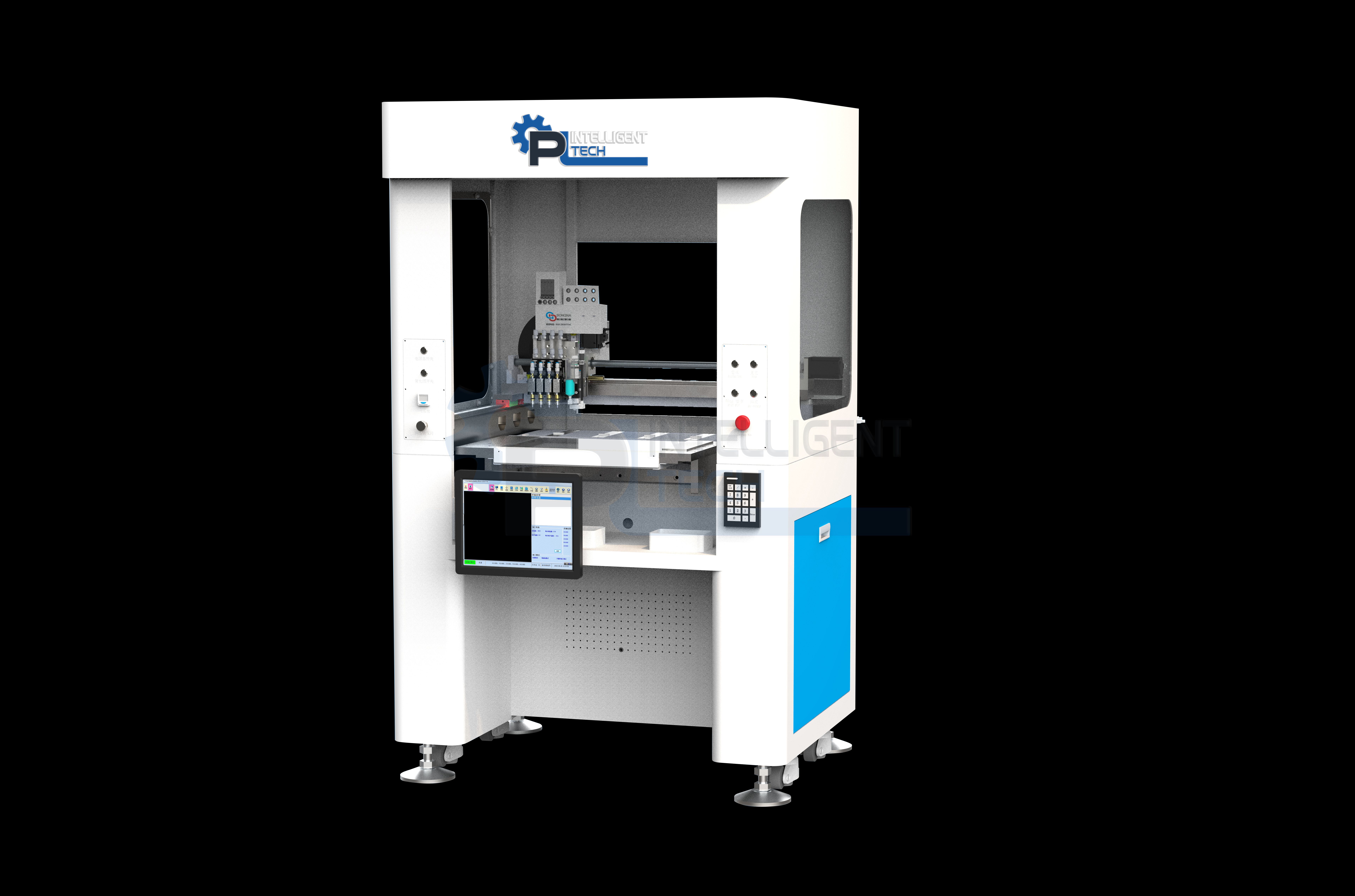

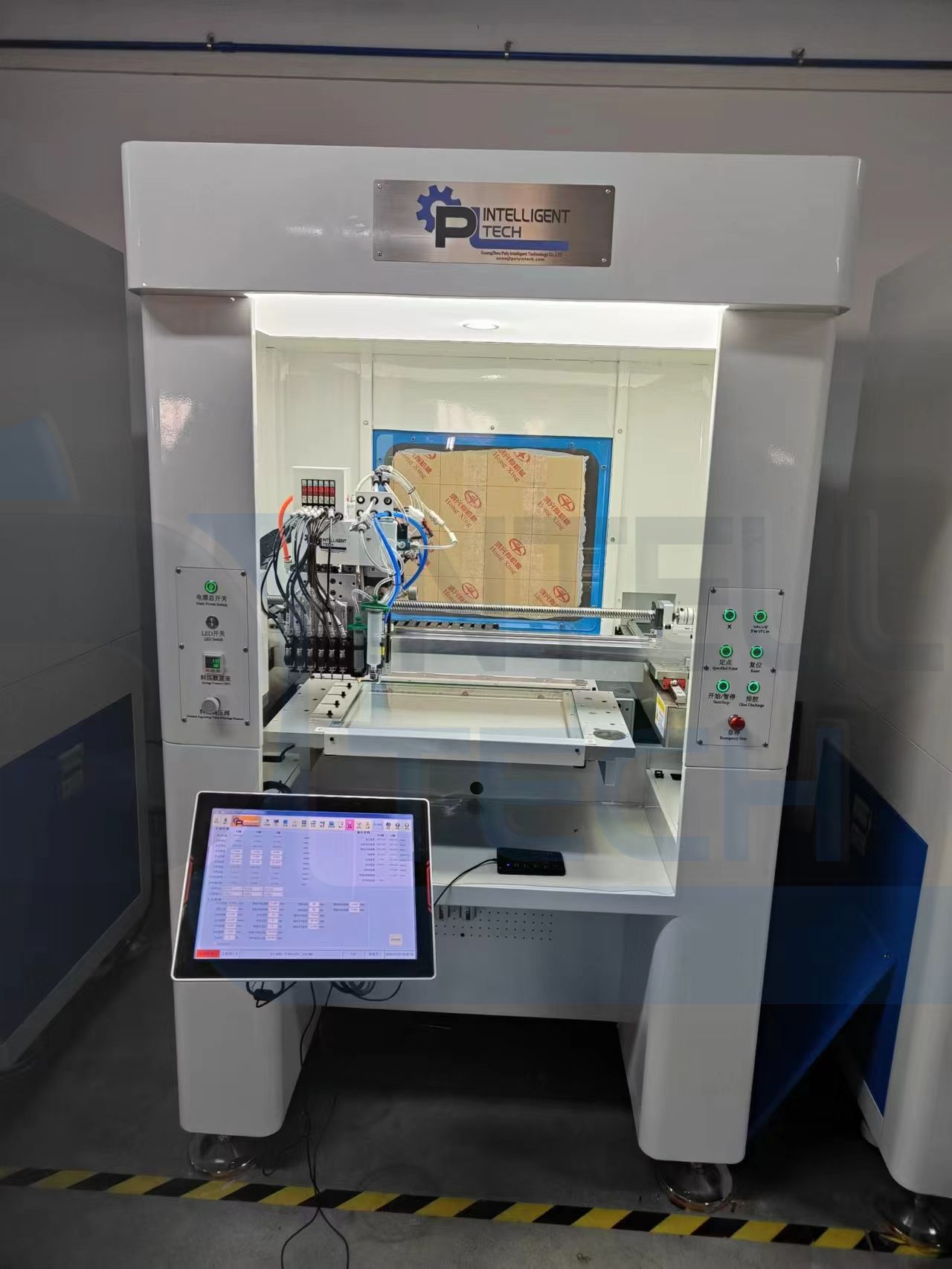

| Device Name | Vision Wax Model Inlaid Stone Robot | Device Model | PL-V6T-L-V1 |
| Inlaid Stone Speed | Theoretical Speed 10000CPH | Dispensing Speed | Theoretical Speed 2 0 0 0 0 C P H |
| Inlaid Stone Accuracy | ±0.05mm | Main Operating System | 64 Digits Windows |
| Power Rating | 2.5KW | Working Power | AC220V/50HZ |

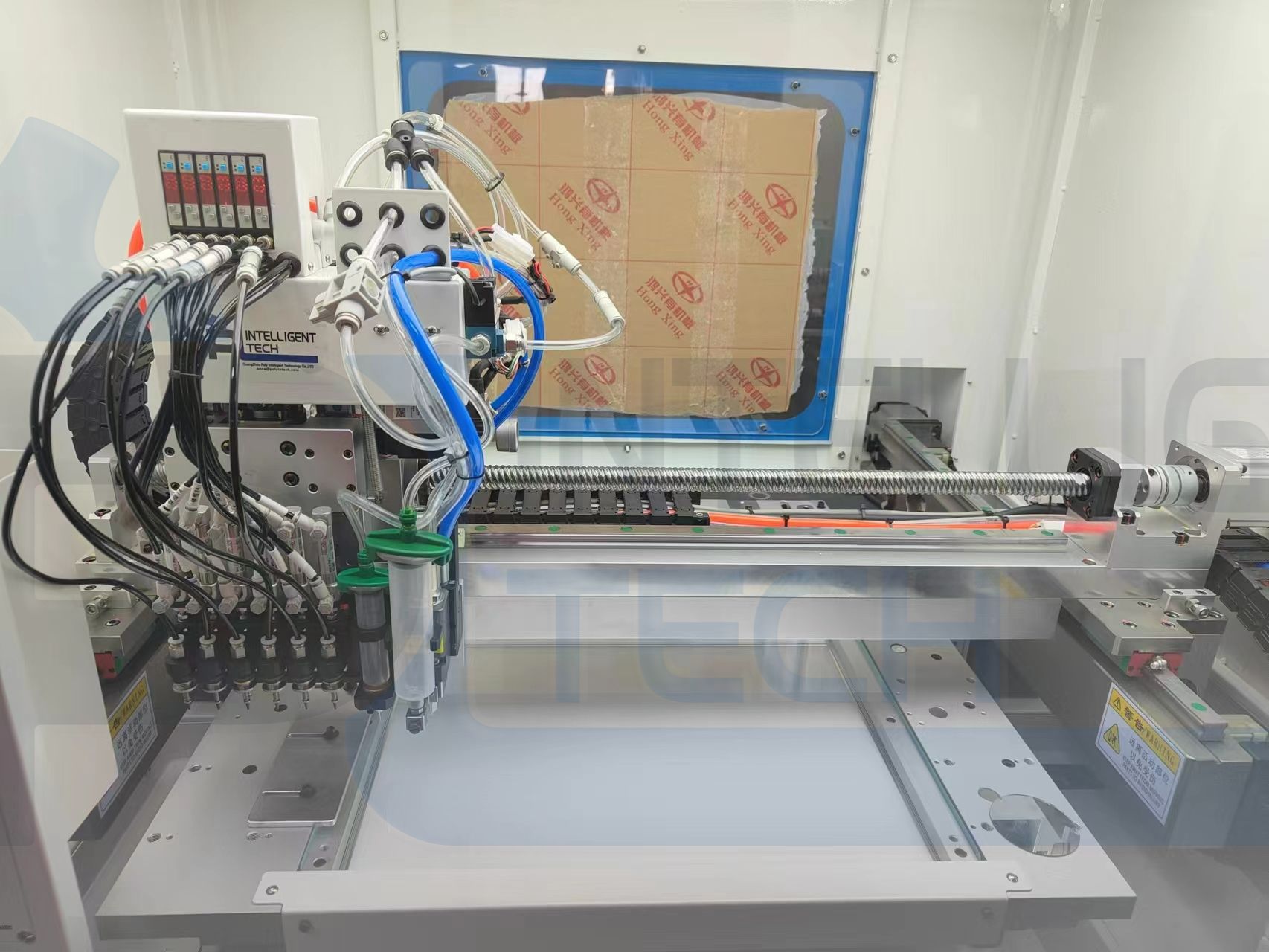

| Transmission Method | Shangyin/Yintai Precision Guideway + TBI Screws | Appearance Size | 1300mm*1190mm*1780mm |
| Machine Tool Structure | Gantry Bridge Structure | Number of Suction Nozzle Heads | 6 Nozzles |
| Weight of the Whole Robot | 800KG | Control System | Industrial Grade Self-Developed Motion Controller |
| Drive System | High Precision Servo Drive System | X/Y/Z Effecive Travel | 450mm/500mm/100mm |
| Range of Flat Processing | 400*300mm | Camera | 20 Million pixels |
