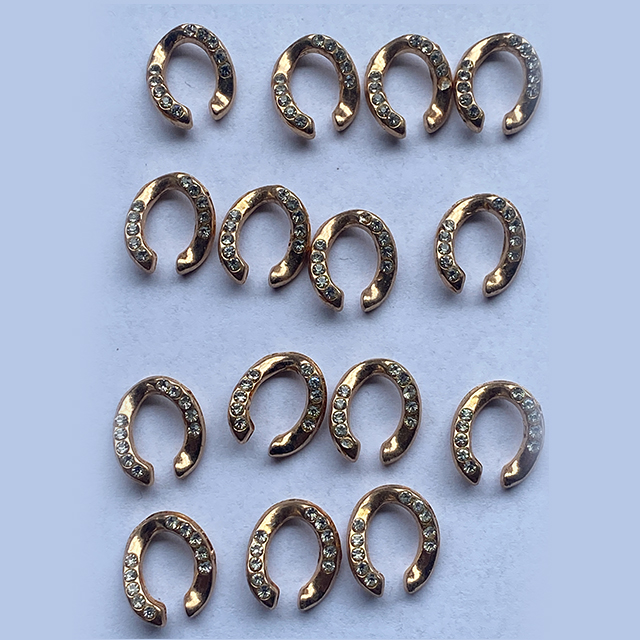

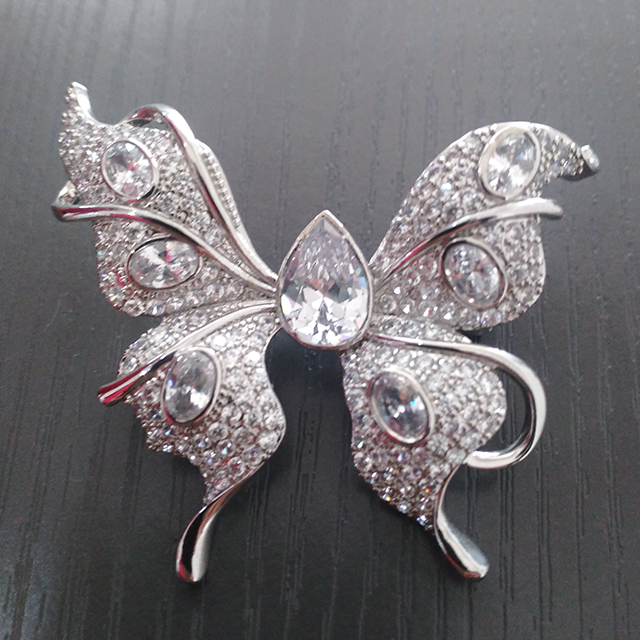

• Can meet the production processing need of jewelry， hardware，plastics and woodwork inlay on 360 ° stereoscopic cambered surface.
• Have a strength of making moulds quicklty. Specially-made moulding clay will be attached randomly, which can be quickly moulded; the clay is durable and does not deform;
• Device is with a vision system which can be teached fast;
• Can aim the needle at the targeted pit automaticaly, using easily, inlay precisely;
• Support to process various kinds of stones;
• Support file copy multi-robot sharing, fast batch production;
• Speed up to 6000-10000 grains/hour;
• One piece of Device can replace 4-7 people, saving a lot of human resources for the production and processing of the entire jewelry industry.

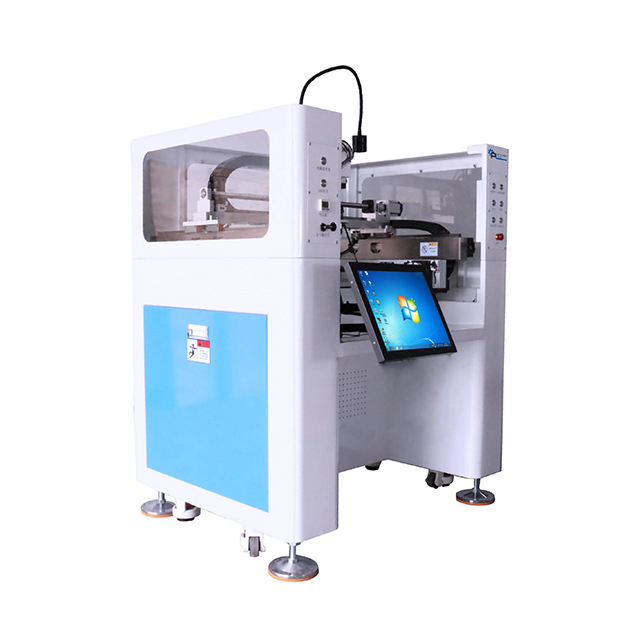

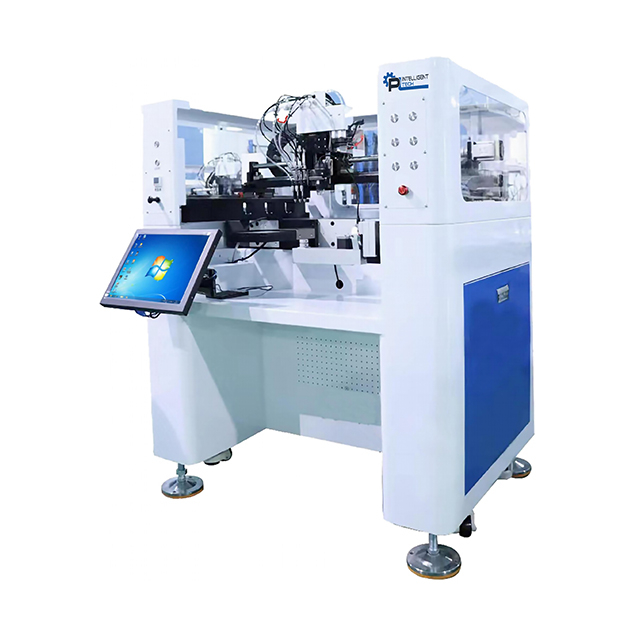

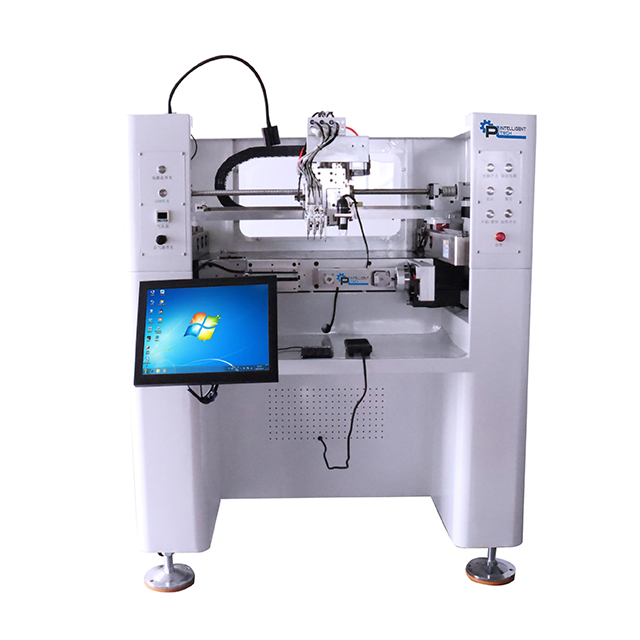

| Device Name | Intelligent Stereoscopic Dispensing and Inlaid Stone Robot | Device Model | PL-Z3T-DV-V1 |
| Inlaid Stone Speed | 6000-10000CPH Theoretical Speeds 6000- 10000CPH | Dispensing Speed | 30000CPH Theoretical Speed 30000CPH |
| Inlaid Stone Accuracy | ±0.05mm | Main Operating System | 64 Digits Windows |
| Power Rating | 2.5KW | Working Power | AC220V/50HZ |
| Transmission Method | Shangyin/Yintai Precision Guideway + TBI Screws | Appearance Size | 1100mm*950mm*1350mm |
| Machine Tool Structure | Gantry Bridge Structure | Number of Suction Nozzle | 2/3/6 Nozzles |
| Weight of the Whole Robot | 630KG | Control System | Industrial Grade Self-Developed Motion Controller |
| Drive System | High Precision Servo Drive System | X/Y/Z Effecive Travel | 420mm/310mm/92mm |
| Operation Method | Touch screen / Handheld numeric keypad | Working Air Pressure | 80psi（0.6Mpa） |
