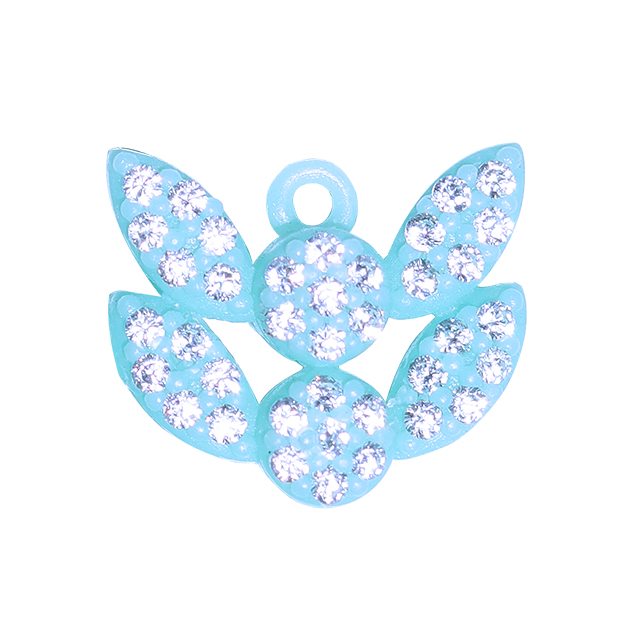

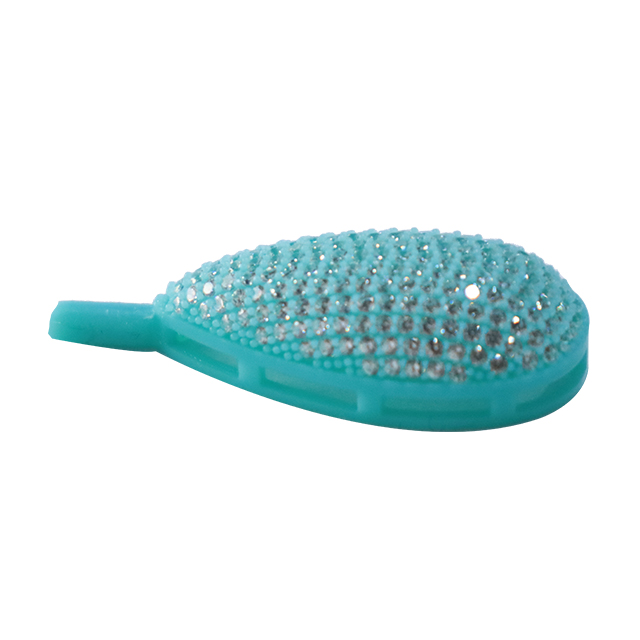

1. Can meet the production processing of jewelry, hardware, plastics and woodwork inlay on 360 ° stereoscopic cambered surface.
2.Have a strength of making moulds quicklty. Specially-made moulding clay will be attached randomly, which can be quickly moulded; the clay is durable and does not deform;
3.Device is with a vision system which can be teached fast;
4.Can aim the needle at the targeted pit automaticaly, using easily;
5.Support to process various kinds of stones;
6.Support file copy multi-robot sharing, fast batch production;
7.Speed up to 12000 pieces/hour;
8.One piece of Device can replace 4-7 people, saving a lot of human resources for the production and processing of the entire jewelry industry.

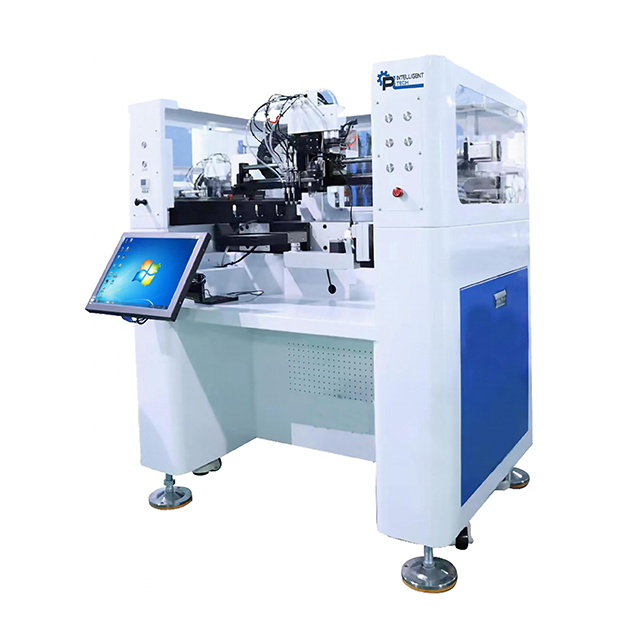

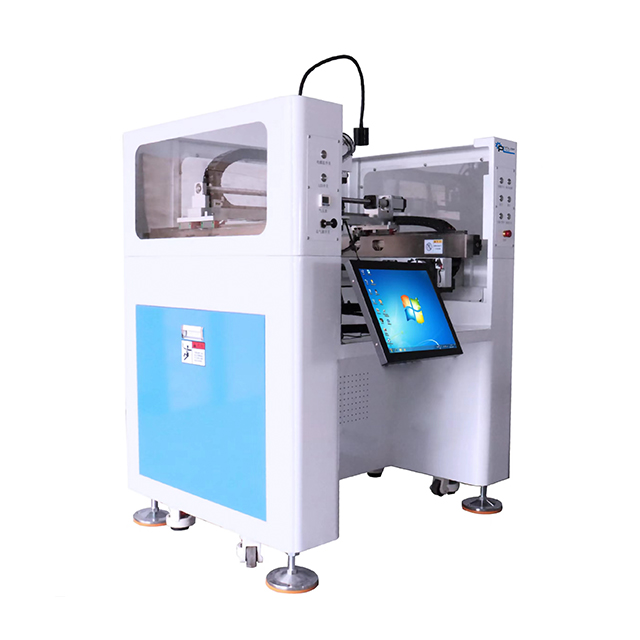

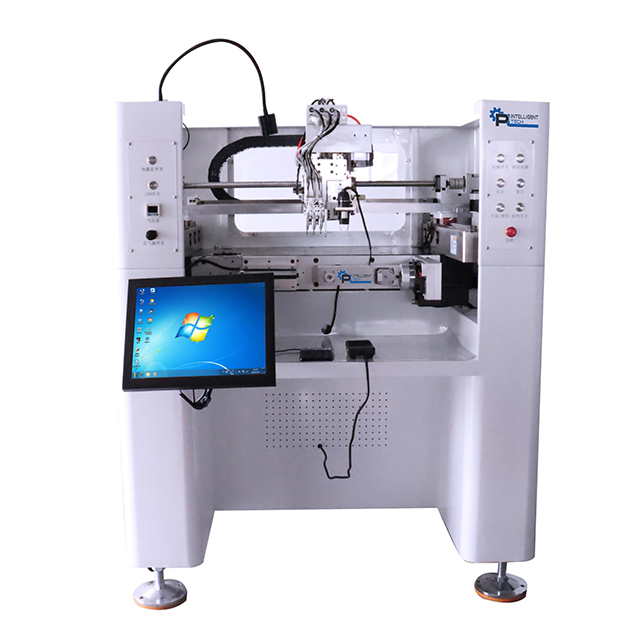

| Device Name | Intelligent Stereoscopic Wax Model Inlaid Stone Robot | Device Model | PL-Z3T-LV-V2 |
| Inlaid Stone Speed | 6000-10000CPH | Weight of the Whole Robot | 620KG |
| Theoretical Speed 6000-10000CPH | |||
| Inlaid Stone Accuracy | ±0.05mm | Main Operation System | 64 Digits Windows |
| Power Rating | 3KW | Working Power | AC220V/50HZ |
| Mode of Transmission | Shangyin/Yintai Precision Guideway + TBI Screws | Appearance Size | 1100mm*950mm*1350mm |
| Stone Size | 0.8-4.0mm | Setting Angle | 360 ° |
| Machine Tool Structure | Gantry Bridge Structure | Number of Suction Nozzle | 2/3/6 nozzles |
| Electron Microscope | 1000 Times | Control System | Industrial Grade Self-Developed Motion Controller |
| Drive System | High Precision Servo Drive System | X/Y/Z Effecive Travel | 420mm/310mm/92mm |
| Operation Method | Touch screen / Handheld numeric keypad | Working Air Pressure | 80psi（0.6Mpa） |
