• Equipped with the new automatic stone feed system , no need to change stone plates repeatedly,which greatly shortens the equipment downtime and increases the productivity.
• Device is with a vision system which can be teached fast;
• Needle aligns automaticly and precisely. It's easy to be operated;
• Support to process various kinds of stones;
• Files can be copied and shared on multiple machines, to achieve to achieve fast batch production;
• Speed up to 8000-10000 grains/hour;
• One piece of Device can replace 4-8 people, saving a lot of human resources for the production and processing of the entire jewelry industry.
• Stone heating function,improves the pass rate and reduces the dropping stones rate.

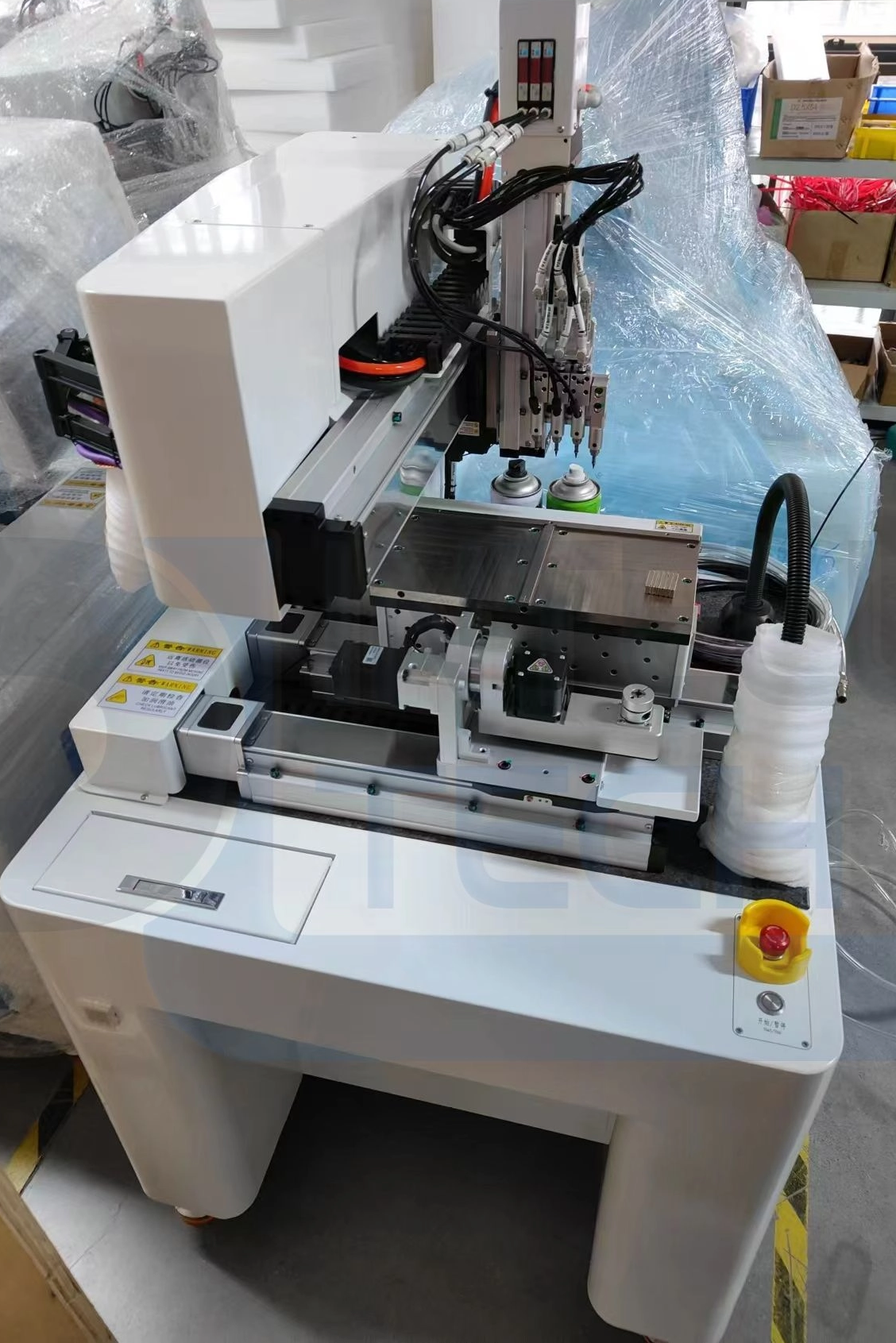

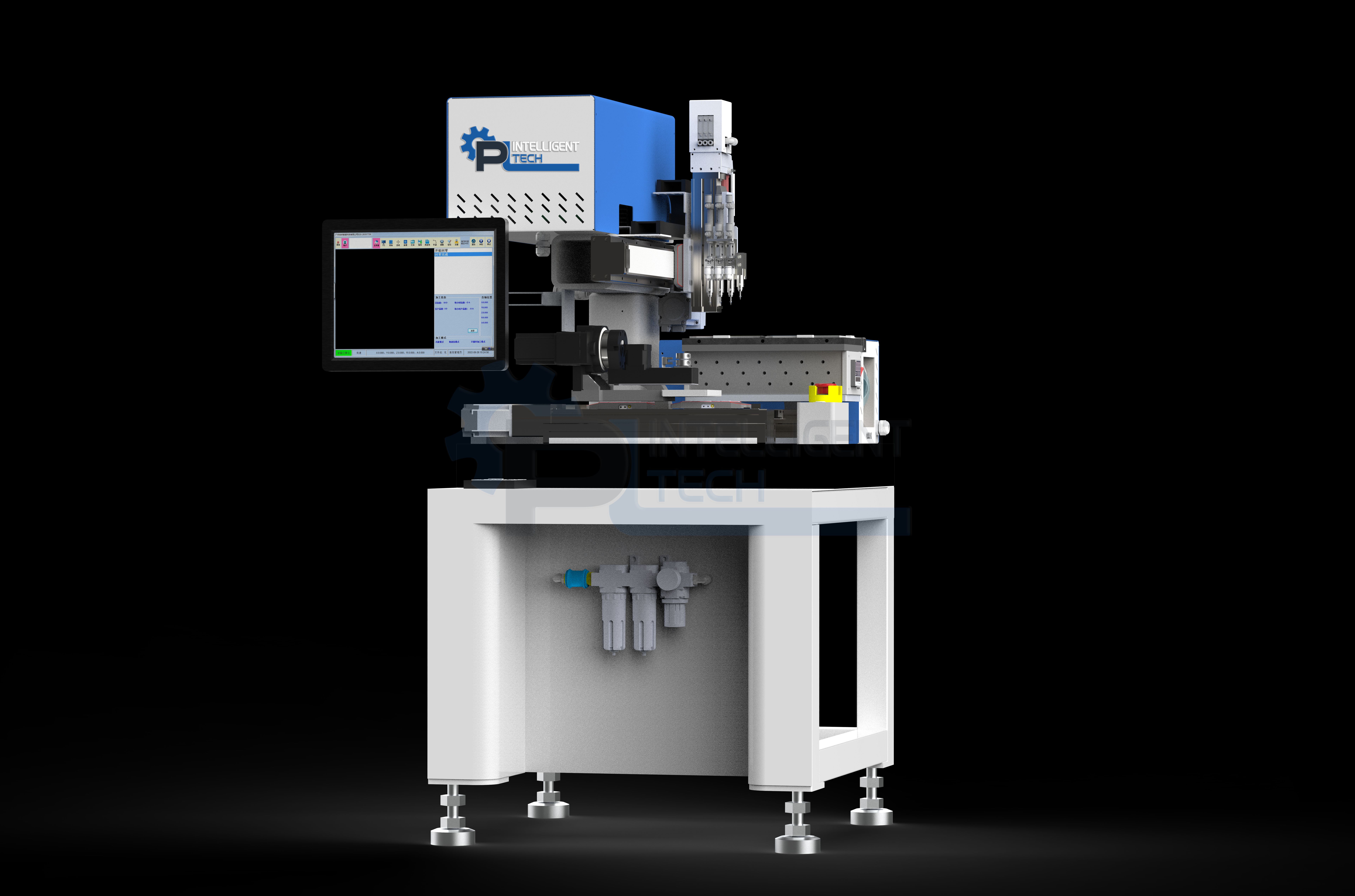

| Device Name | Small 3D Wax Stone Setting Robot Vaule Version 3 Two Nozzles (3-tip 2- stone plate feed) | Device Model | PL-XZ3T-LV-V2 |
| Inlaid Stone Speed | 8000-10000CPH Theoretical Speed 8000-10000CPH | Machine Weight | 330KG |
| Inlaid Stone Accuracy | ±0.05mm | Main Operation System | 64 Bits Windows |
| Machine Size | 750mm*700mm*1400mm | Working Power | AC220V/50HZ |
| Transmission Mode | Shangyin/Yintai Precision Guideway + TBI Wear-Resisting Screws | Power Rating | 3.2KW |
| Machine Tool Structure | Cantilever Structure | Number of Suction Nozzle | 3 Nozzles |
| Electron Microscope | 1000 Times | Control System | |
| Bus-Mastering | |||
| Drive System | High Precision Servo Drive System+Stepping Motor | X/Y/Z Effetcive Travel | X1:200 X2:280 Y:330 Z:90 (mm) |
| Operation Method | Touch screen / Handheld numeric keypad | Working Air Pressure | 80psi（0.6Mpa） |
