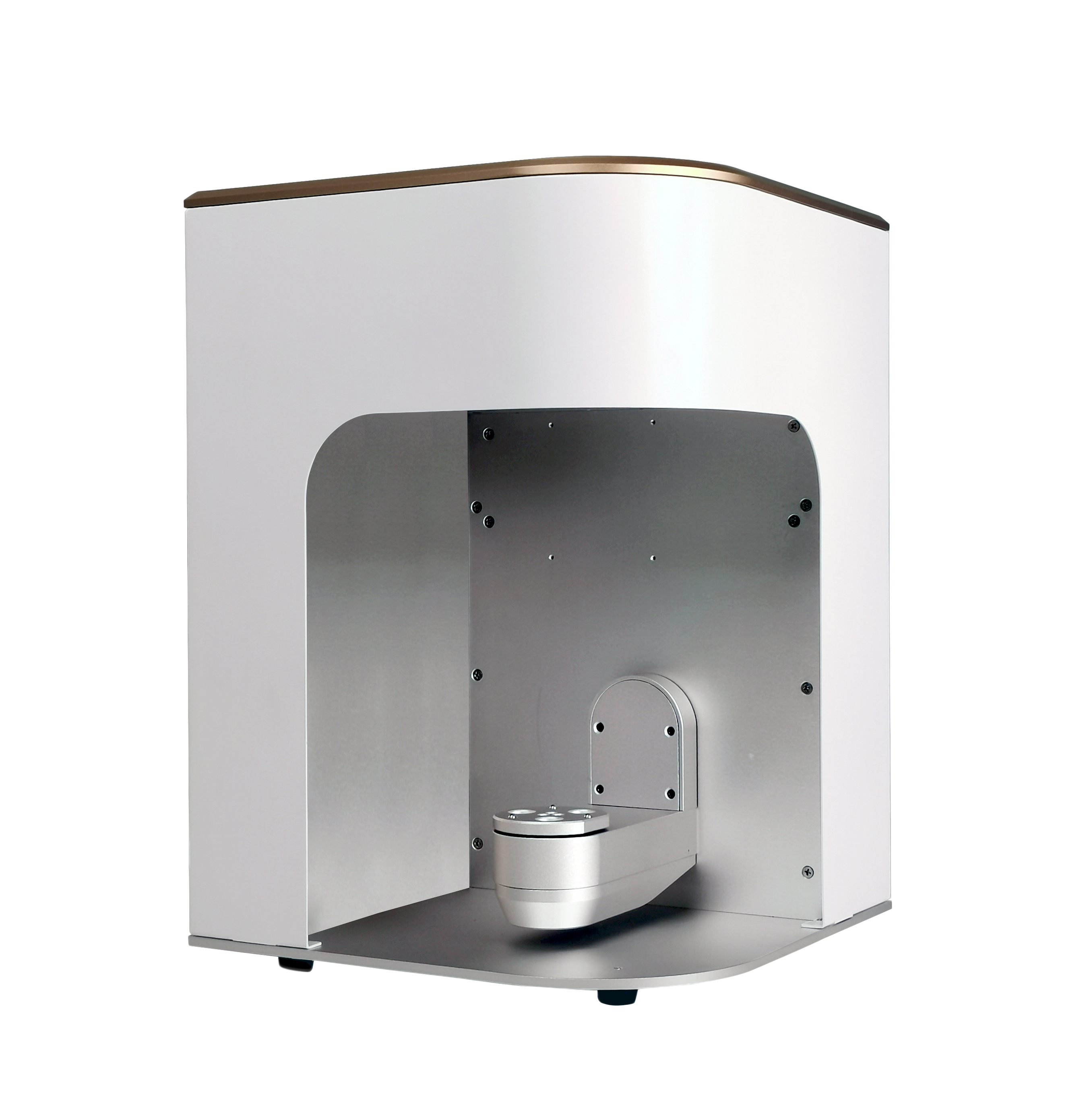

PL-3DS-V1
Polyintech
Model No | PL3DS-V1 |
Size | 330*317*456mm |
New.weight | 15KG |
Range | 100*80*80/80*60*60mm |
Scan mode | Non-contact automatic scanning |
Camera | 2*6.3MP |
Interface | 2*USB3.0 |
Door | without door |
Power | AC100-220V.50HZ |
working temperatuer | 0-45°C |
Scan accuracy | 0.01mm |
Scan Speed | 0.6s |
Out put format | STL |
Software | 3Shape,EXO,Zbrush,jewelcad etc |
1.Ensure the perfect reflection and redesign of jewelry details.
2.Greatly improve the design efficiency.
3.No any physical damage to jewelry samples.

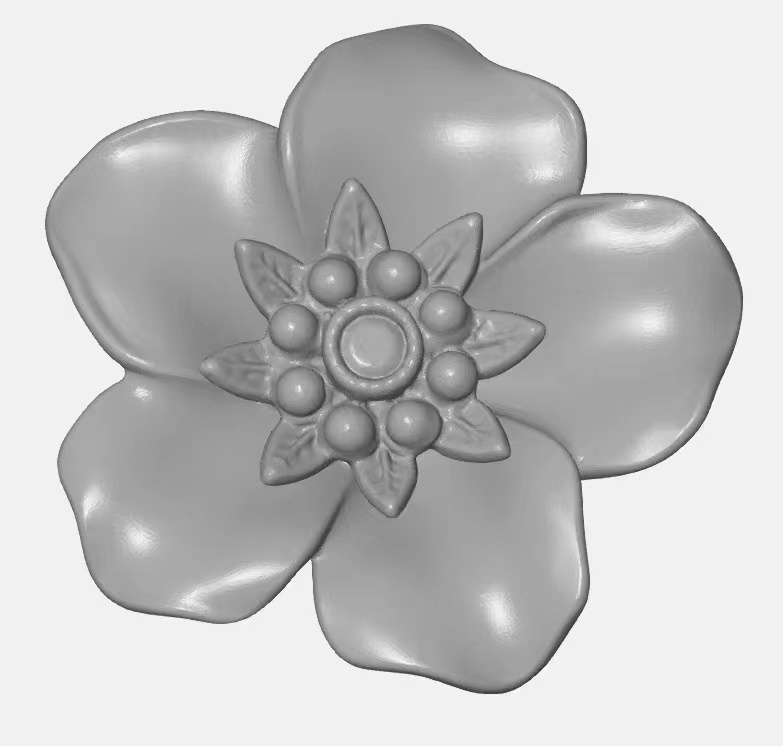

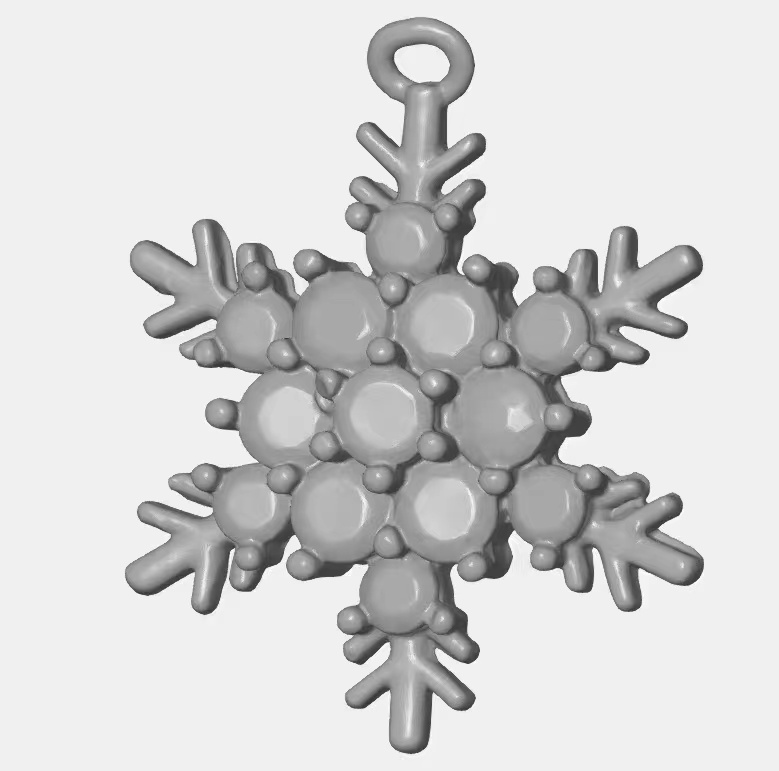

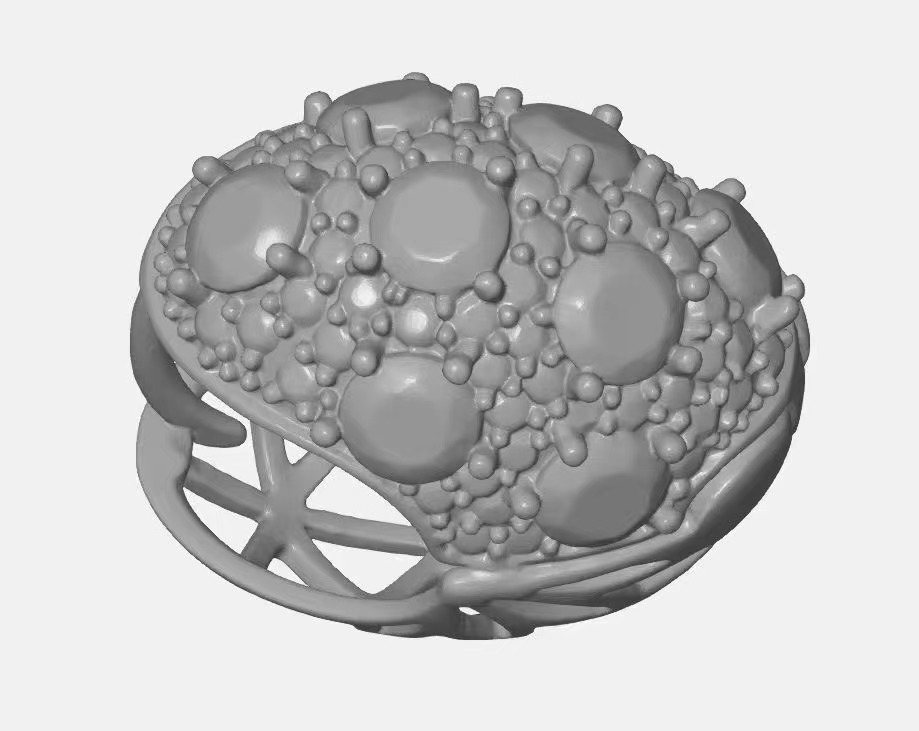

4.Accurately and Quickly obtain the 3D data of the jewelry and record it.
5.It can realize jewelry in mass production and the get 3D data easily to enlarged or reduced the sizes and casting samples by the engraving machine.
6.The interface is simple and easy for users to learn and understand.
7. Exquisite optical craftsmanship, adopting 16mm 5MP standard optical measurement lens module.
8.High precision: intelligent fusion, single scanning precision can reach 0.01mm.
9.The software is efficiently integrated, and the global registration fusion algorithm module is integrated, which supports the fusion of massive high-quality 3D data and continuous multiple scans without layering.
10. Integrated global point cloud iterative fusion module to achieve efficient de-noising and smoothing fusion.
