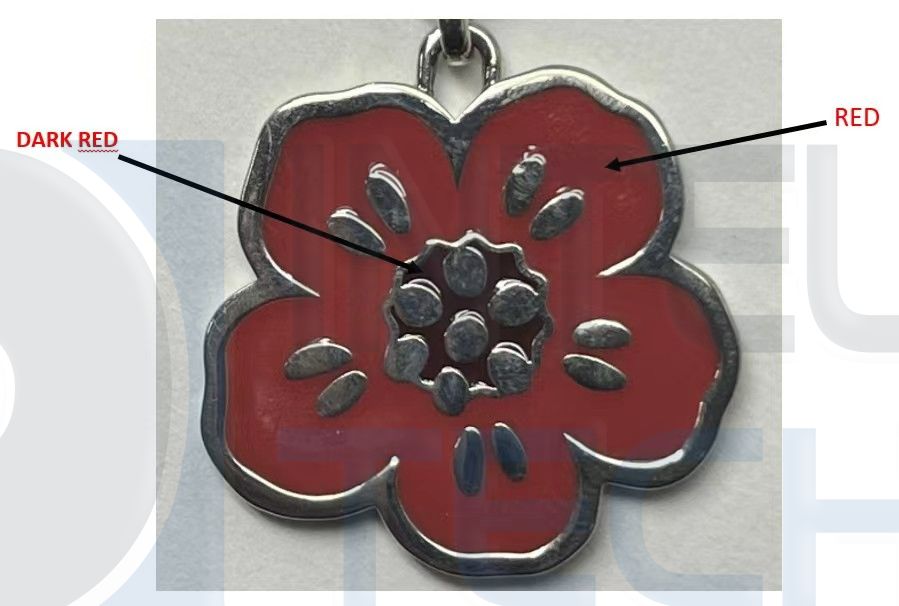

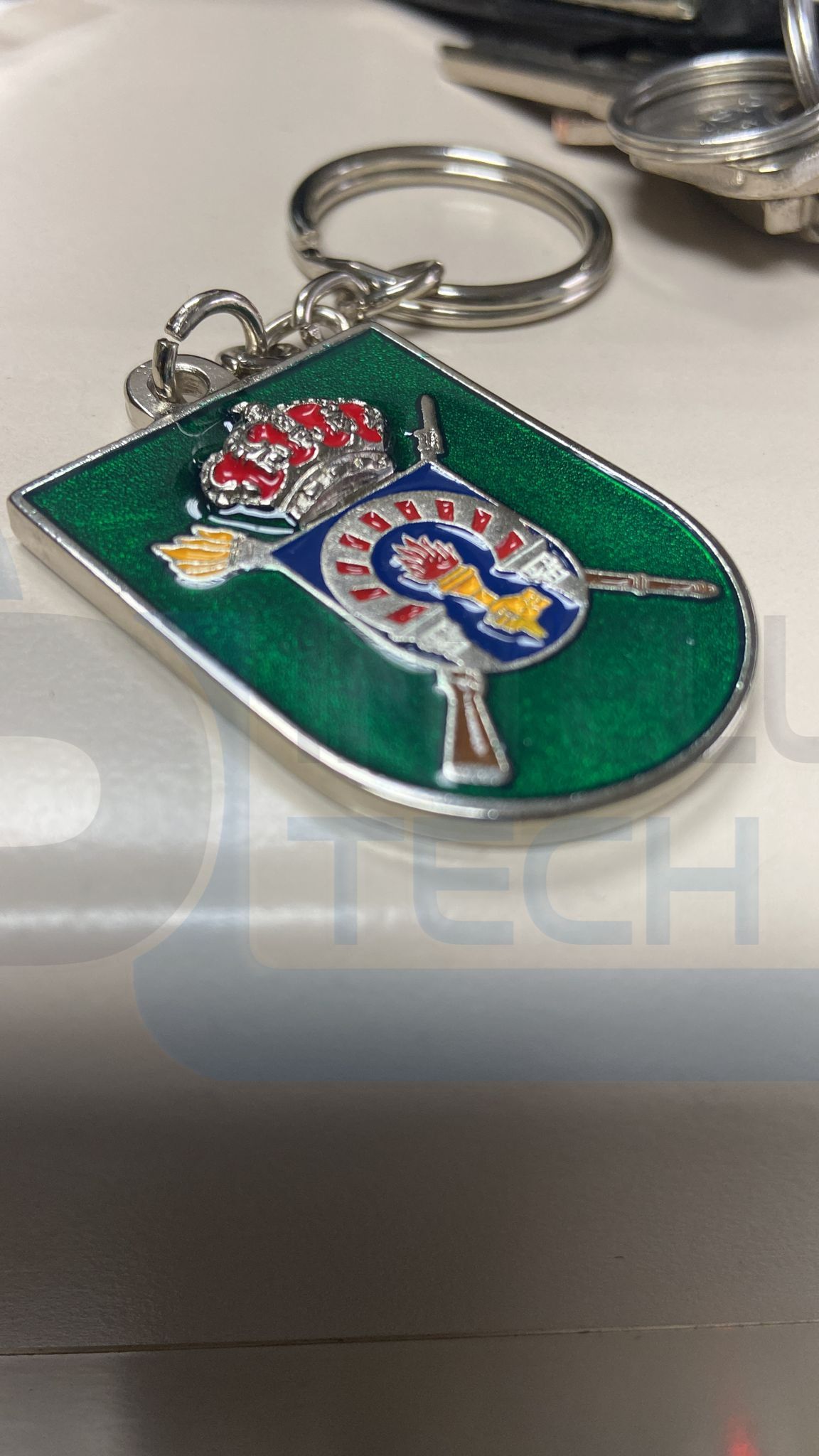

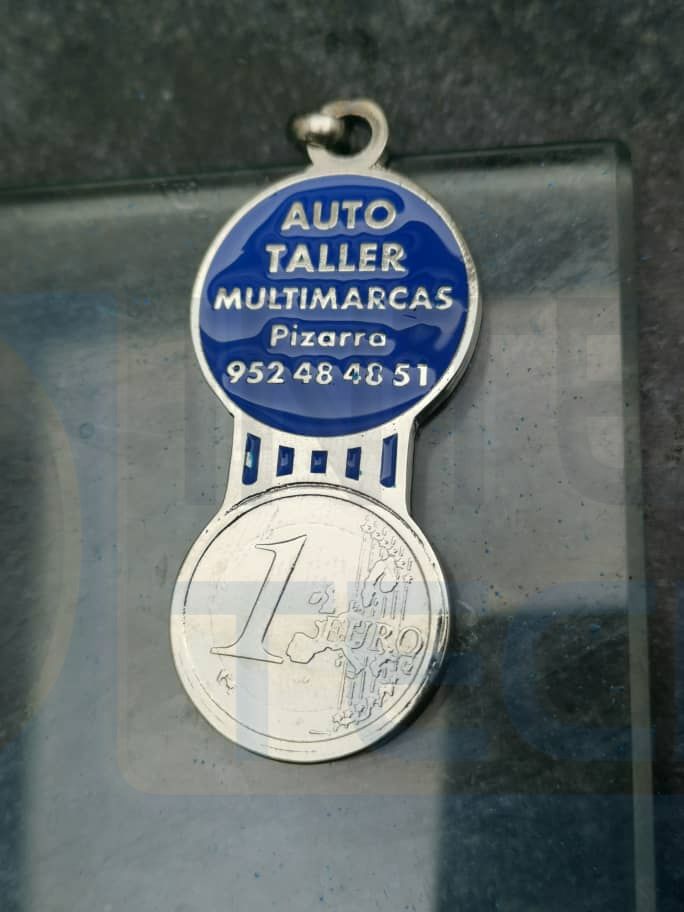

• Specially for jewelry dispensing and coloring in an efficient and fast way, having 2000W pixels for clear identification; simple and fast template making;
• Simple operation, quick to get started, low education requirement for the operating staff;
• Professional pressure stabilization system to ensure the uniformity of glue output;
• Extra large memory space for storing 9999 groups of files, storing the files for easy recall later;
• One Device can replace 3-5 persons, saving a lot of manpower;
• High stability and consistency, with a pass rate of 99%, the quality has been greatly improved and the waste of resources has been reduced;
• Dual-station cycle processing, improveing production value and efficiency.

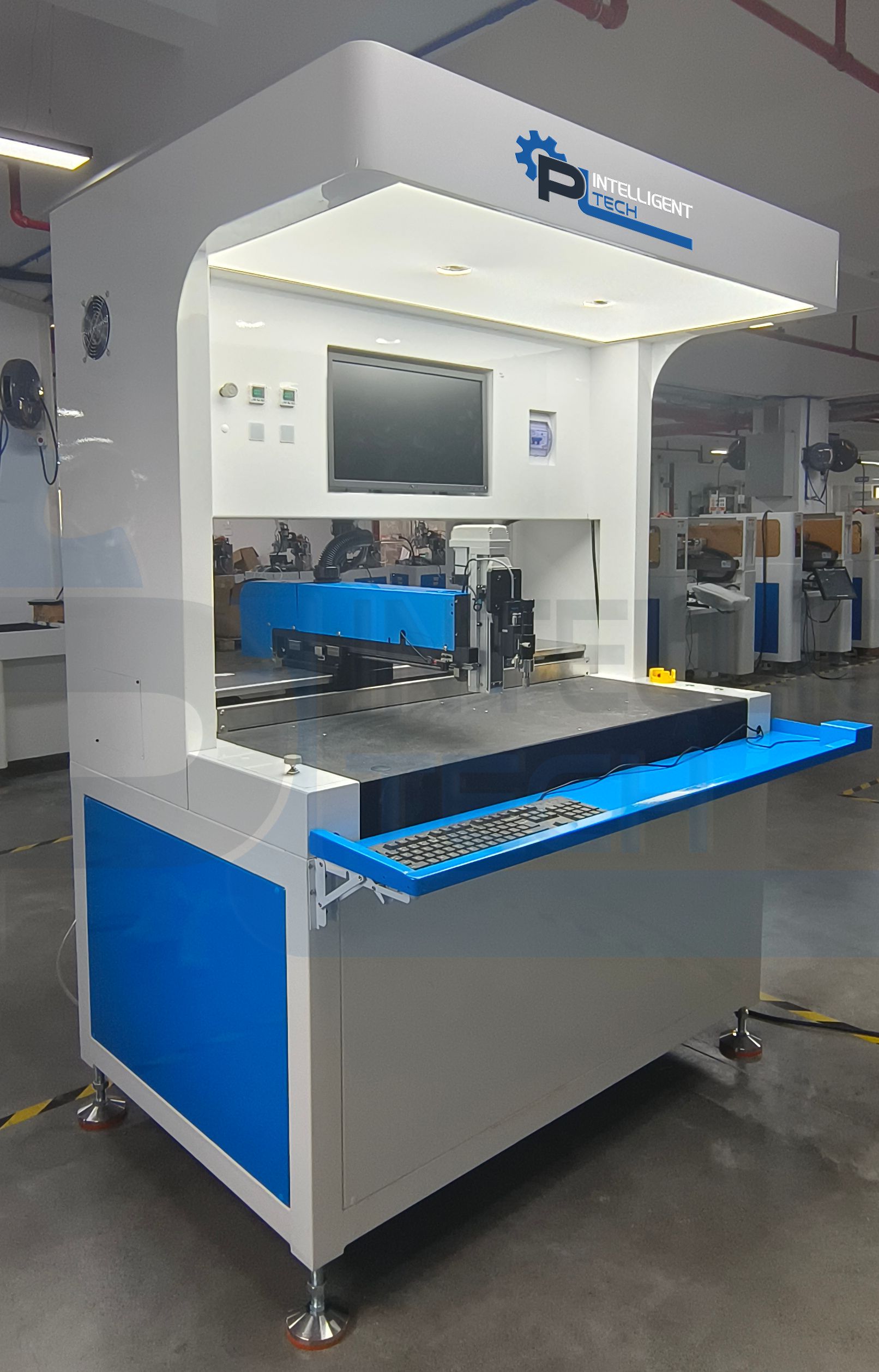

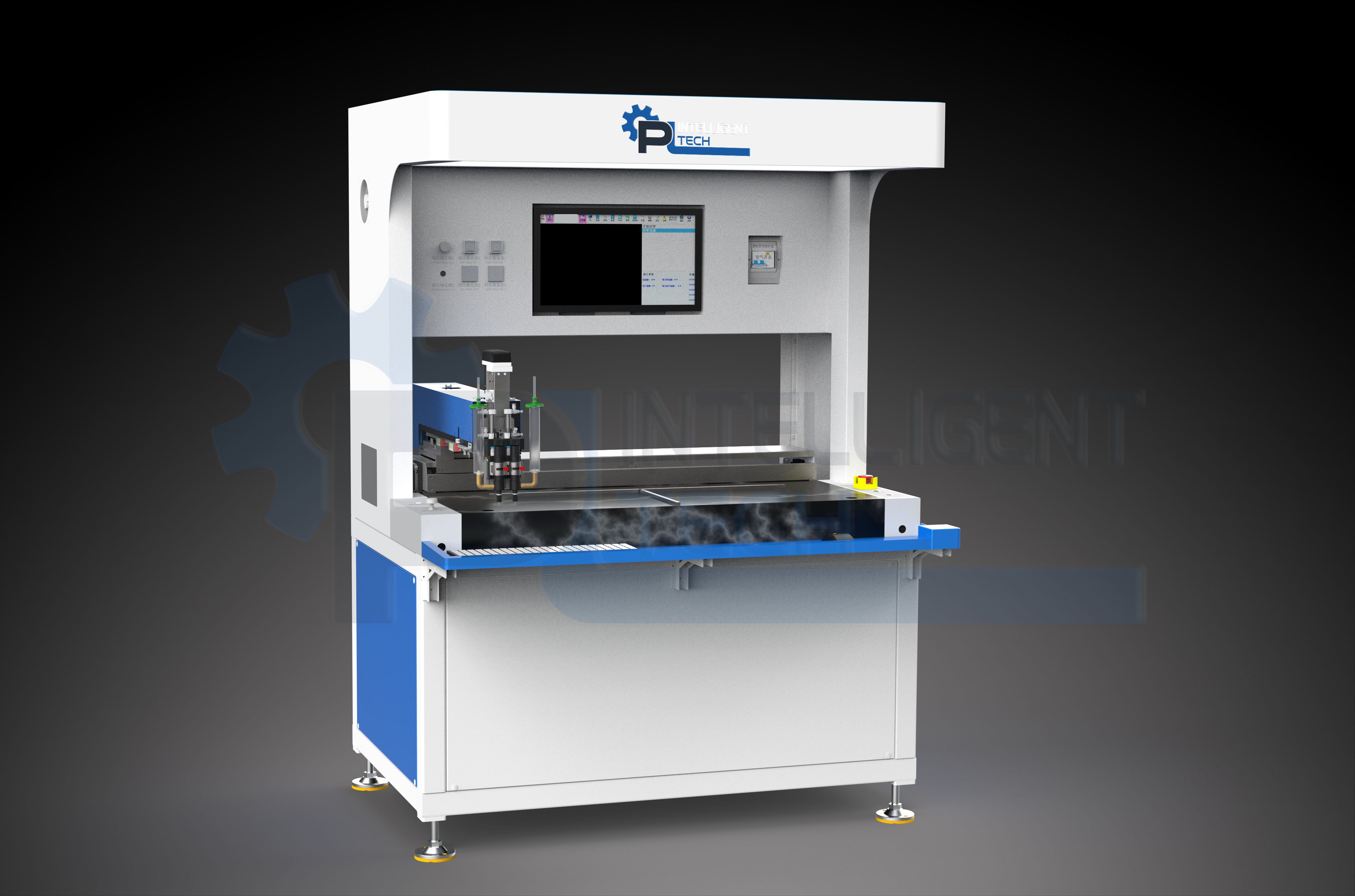

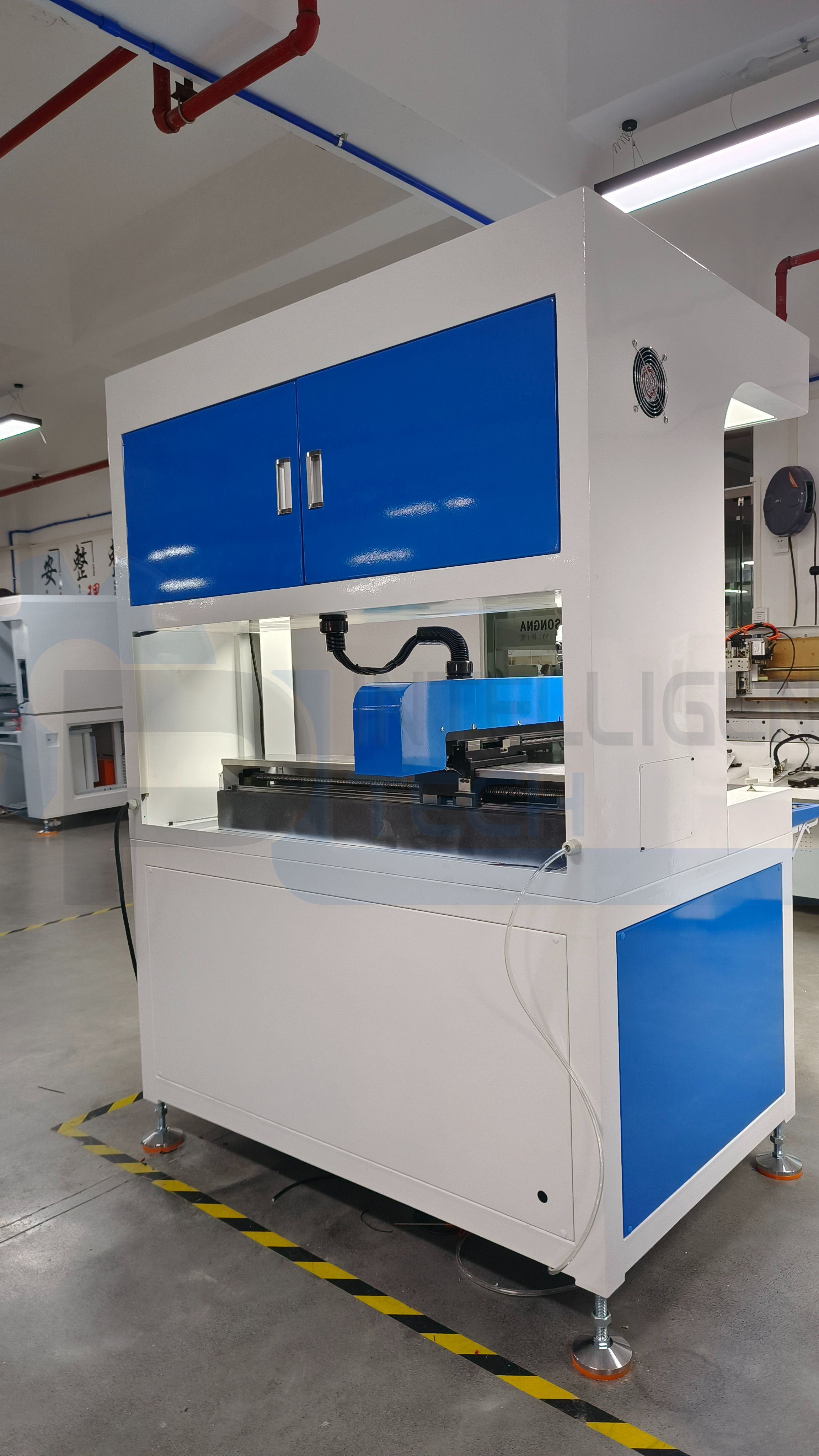

Device Name | Dual Platform Vision Dispensing Robot | Device Model | PL-DDT-4-V1 |
Device Type | Vision Intelligence | Machine Tool Structure | Marble Triaxial Structure |
Exercise Plane | Grinding Marble | Processing Range*2 | 300*400mm/400*500mm |
Effictive Travel | 450mm*350mm*100mm | Transmission Mechanism | Shangyin/Yintai Precision Guideway + TBI Screws |
Camera | 10 Million/20 Million Pixels | Drive System | High Precision Servo Drive System |
Software System | 64 Digits Windows | Number of Dispensing Heads | 2 Nozzles |
Dispensing Accuracy | ±0.05mm | Dispensing Speed | 20000cph |
Control System | Self-Develped Motion Controller | Working Air Pressure | 80psi(0.6Mpa) |
Power Rating | 2KW | Working Power | AC220V/50Hz |
Appearance Size | 1500mm*1575mm*1940mm | Weight of the Whole Robot | 680KG |
