Wax Injector Machine

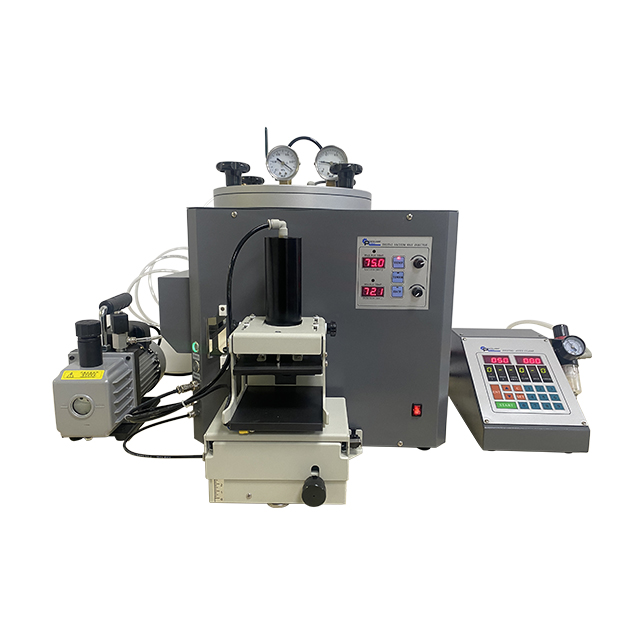

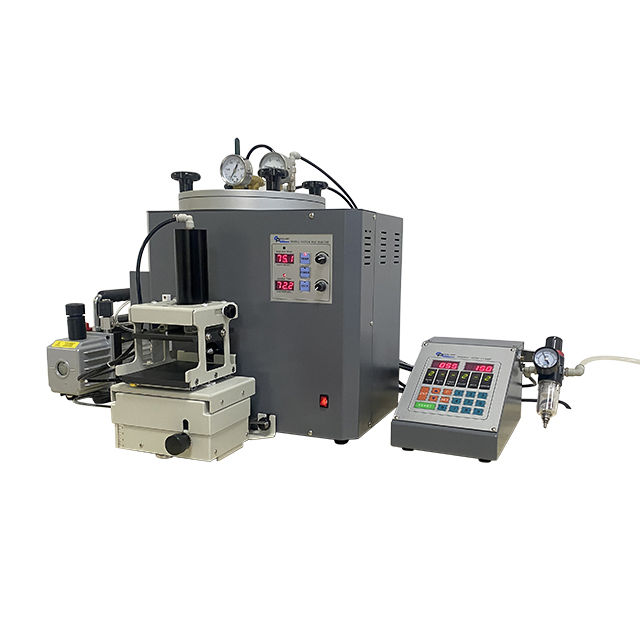

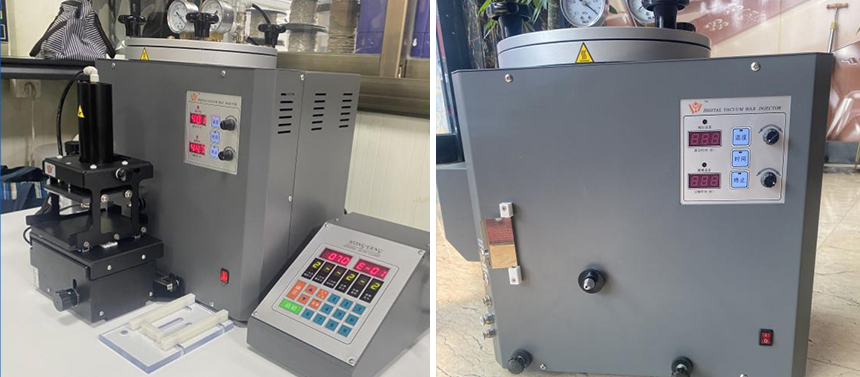

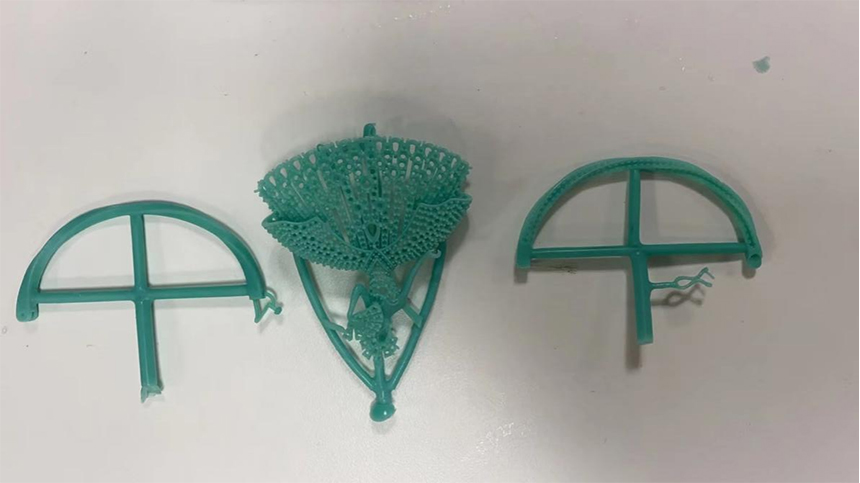

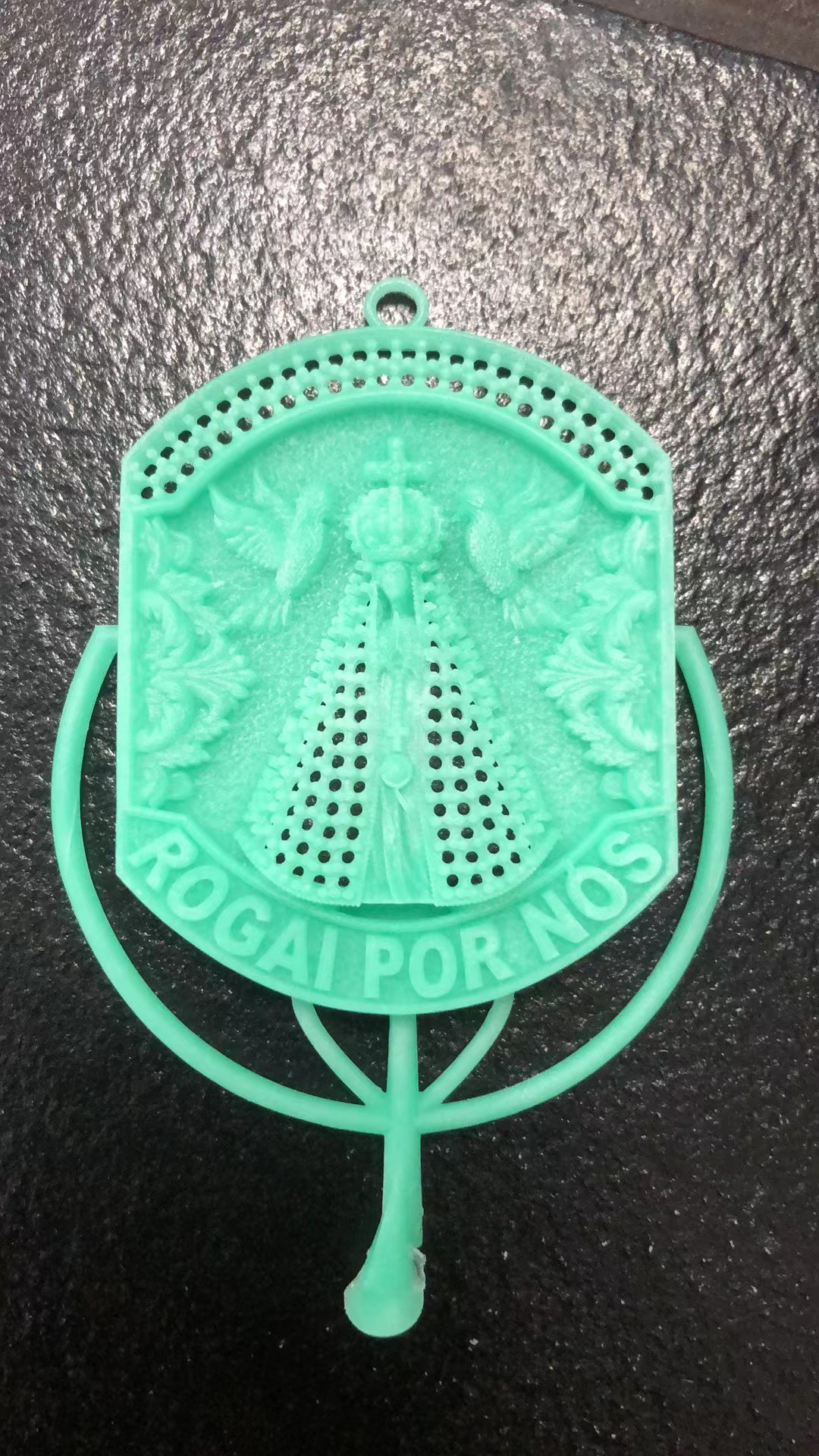

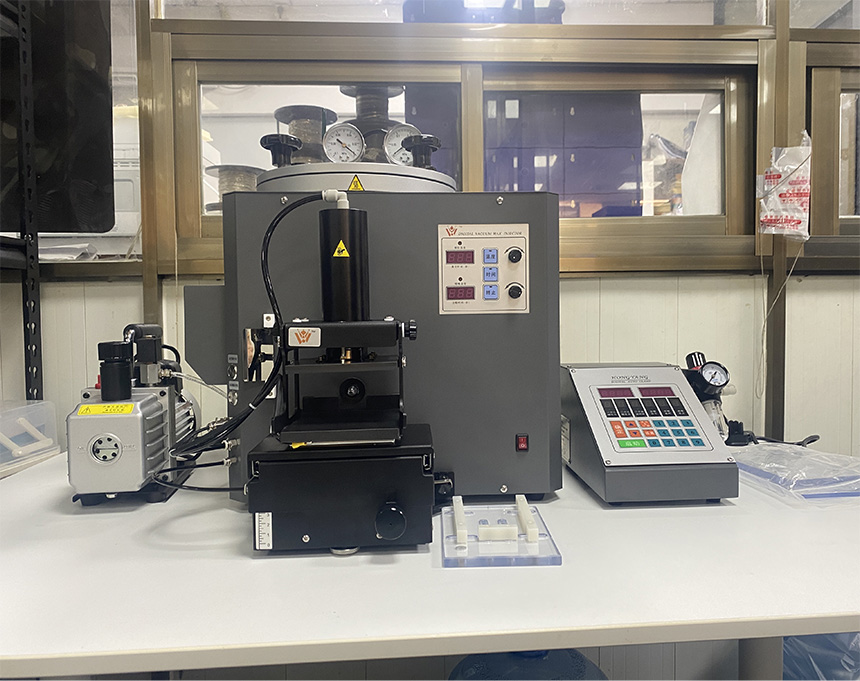

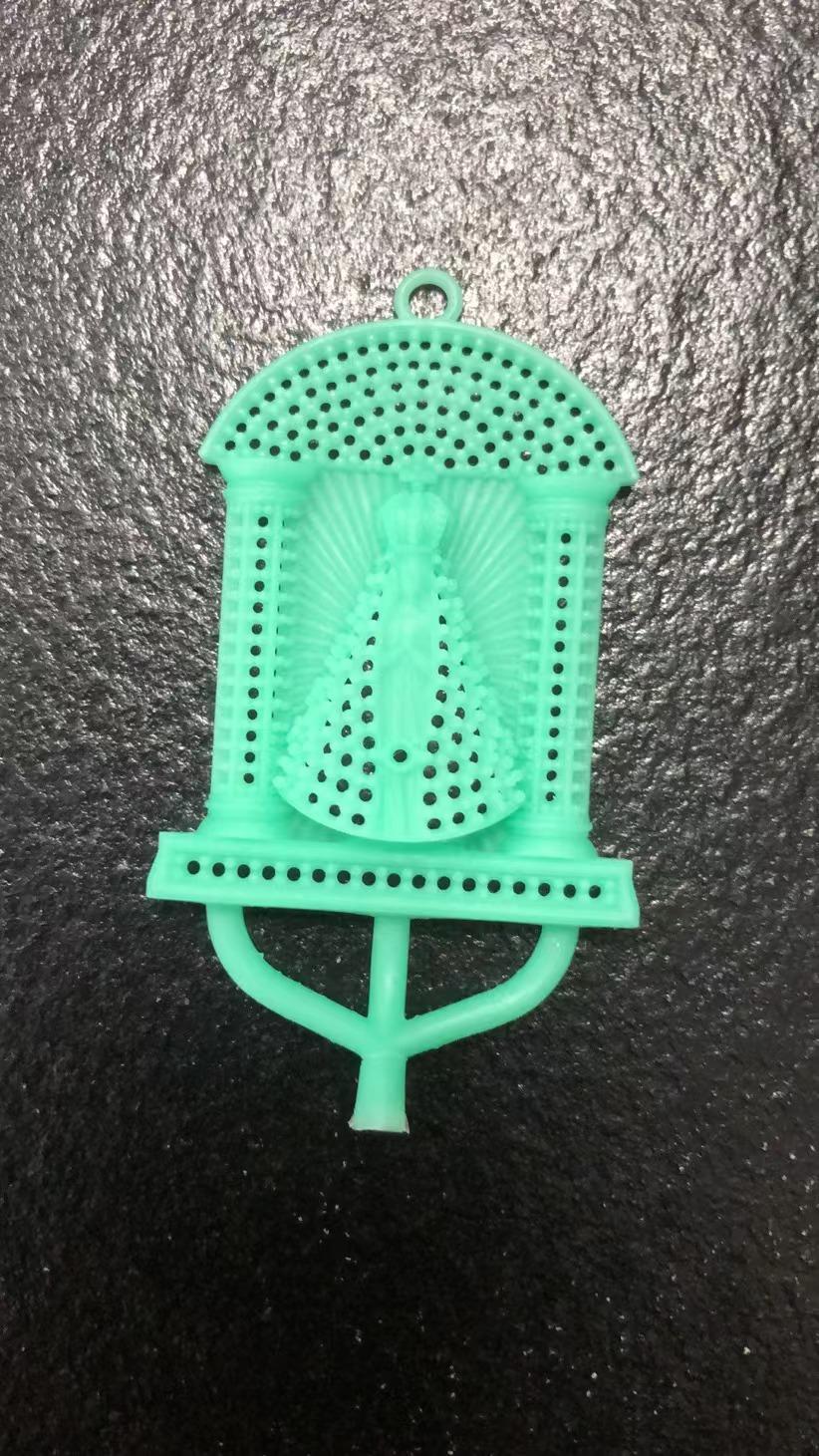

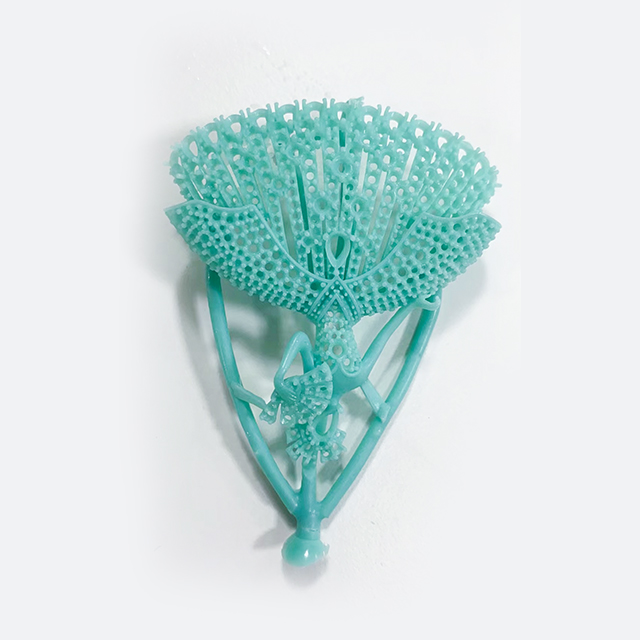

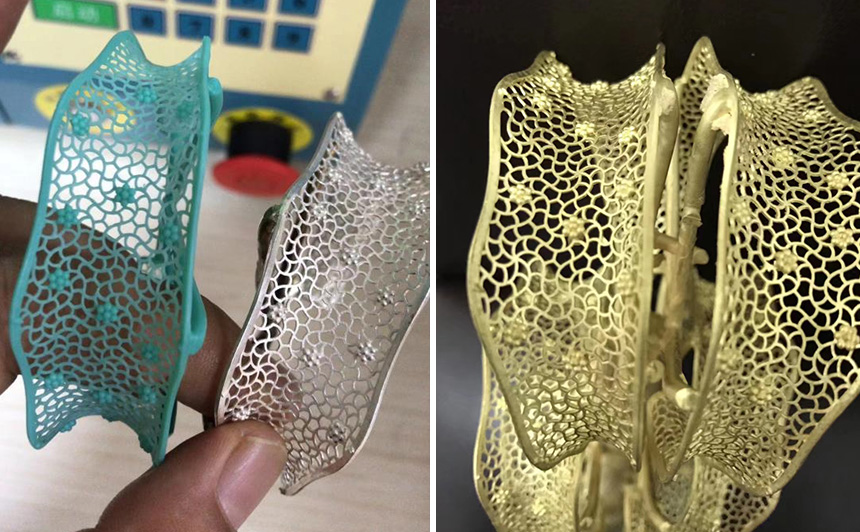

Japan Technology Digital vacuum wax injector

1. Technical parameters

1-1. Parameters of wax injector

Power supply: single-phase, AC 100-220V ± 10%, 50/60Hz

Rated power: 500W

Temperature display range: 40.0 ～ 99.9 ℃ (103 ～ 212 ℉)

Temperature setting range: 40.0 ～ 90.0 ℃ (103 ～ 193 ℉)

Temperature accuracy: ± 0.5 ℃ Vacuum timing setting range: 0 ～ 99.9 (S)

Setting range of wax injection timing: 0.1 ～ 600 (S)

Time accuracy: 0.1S

Timing heating start time: 0 ～ 99H

Wax cylinder volume: about 3Kg

Range of vacuum gauge: - 0.1~0MPa

Rated current of fuse: 5A

Overall package size: L 525 x W 380 x D 558 MM

Net weight: 21.5KG

1-2. Manipulator parameters

External input air pressure: 0.4 ～ 0.7MPa

Set pressure range of pressure regulating valve: 0.3 ～ 0.5MPa

Display range of pressure sensor: - 5 ～ 240KPa

Setting range of primary wax injection pressure: 10-220KPa

Setting range of secondary wax injection pressure: 10-220KPa

Setting range of starting time for secondary wax injection: 0 ～ 99.9 (S)

Pressure setting range of clamp and die: 30 ～ 235KPa

The setting range of the clamping fixture's mold feeding pressure: 65 ～ 235KPa

Fixture holding time setting range: 0 ～ 300 (S)

Maximum workpiece count: 0 ～ 9999

Storage data sets: 10000

Startup mode: magnetic field induction or key

Rubber mold specification (normal): L 135 x W 105 x D 45 (max)

Rubber mold specification (widening): L 135 x W 135 x D 60 (max)

Overall package size: L 530 x W 270 x D 530 mm Net weight: 10KG

2 1-3. Vacuum pump parameters

Power supply: single-phase, AC 100-220V ± 10%, 50/60Hz

Maximum power: 120W

Limit pressure: - 0.1Mpa

Air extraction rate: 3.6M ³ / h

Overall package size: H 220 x W 275 x D 110

Net weight: 7.4kg
